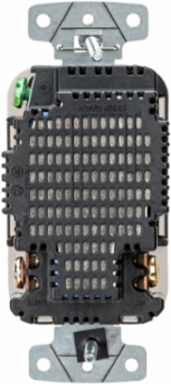

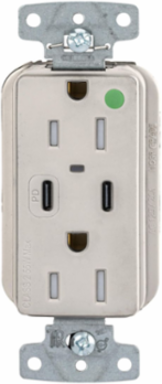

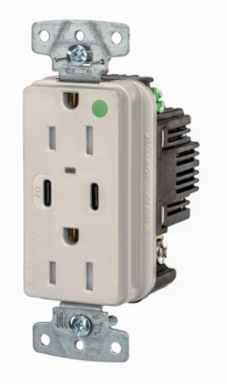

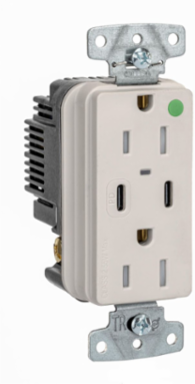

Hubbell Wiring Device-Kellems USB8200CPDLA Tamper Resistant Receptacle NEMA 5-15R 2-Pole 3-Wire 55W USB-C Light Almond

MPN: USB8200CPDLA
UPC: 783585723310
PPN: HBL-USB8200CPDLA
UNSPSC: 39121406

$101.05

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Tamper Resistant Hospital Grade Receptacle, 2-Pole 3-Wire Grounding, 1 Type "C" Power Delivery, 1 Type "C" Standard 5V

Features

USB-C Port Marked PD provides up to 20V, 55W Output. The additional Type C or Type A port charges at 5V/1.5A. Supports USB BC 1.2
Two Type C USB Ports, One Supports Power Delivery
Tamper Resistant Hospital Grade Duplex Compatible
USB Ports Rated 10,000 Cycles

Specifications

Key Specifications

Country of Origin	China
Width	2.200 in
Color	Light Almond
Number of Poles	2-Pole
Phase	Single Phase
Type	Tamper Resistant USB
Wire Size	#14 AWG to #10 AWG
General Literature Asset 1 Display Text	FREQUENTLY ANSWERED QUESTIONSUSB-C Power Delivery Receptacles
Number Of Poles	2-Pole
Style	Style Line Decorator
Freight Class Code	06168002
Image Actual Or Representative	A
Series	Hospital Grade USB Charger
BOX SIZE	4.200x11.000x4.400 (in)
Carton - Number of Sub Packs	10
Carton - SCC-14 Next Lower Level Sub Pack	00783585723310
Case Weight	22.490 lb.
Pallet Length	48.000 in
Pallet Width	40.000 in

Current / Amperage Rating	15 A
Industry Standard(s)	NEMA 5-15R, USB PD 3.0, USB BC1.2
NEMA Rating	5-15R
Number of Wires	3-Wire
Standard	NEMA 5-15R, USB PD 3.0, USB BC1.2
Voltage Rating	125 V
Warranty	11160415
Nema Rating	5-15R
Number Of Wires	3-Wire
Class Code	A04
Harmonization Code	8536698000
Sub Class Code	A04A062
Base Unit of Measure	EA
Carton - Gross Weight per Pack	0.000 lb.
Carton - Pack Description	Carton
Carton - Total Units	10
Pallet Height	51.000 in
Pallet Weight	1389.400 lb.
NAICS Code	335931A102
