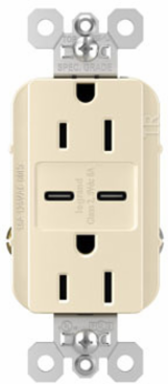

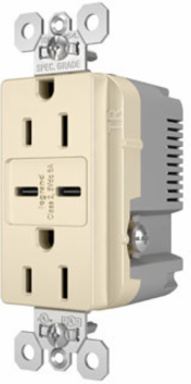

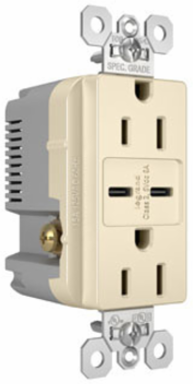

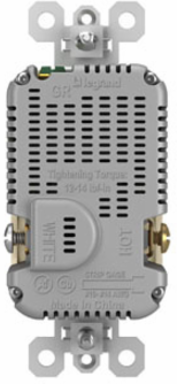

Pass & Seymour TR15USBCC6LA 15A 125V Tamper-Resistant Receptacle with 2 USB Type-C Ports, Light Almond
- MPN: TR15USBCC6LA
- UPC: 785007209808
- PPN: P-S-TR15USBCC6LA
- UNSPSC: 39121406
CAD
$86.62
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
15A 125V Tamper-Resistant Receptacle with 2 USB Type-C Ports, Light Almond
Features
- Overall 6A charging capability with smart current-sharing technology to allow for full 3A through a singular Type-C port
- Posted terminal screws and external back-wire pressure plates for more productive and reliable terminations
- With (2) USB Type-C ports to charge the latest mobile devices
- USB Type-C ports carry a minimum rating of 10,000 insertions
- Stainless steel auto-ground clips assure positive ground
- Slim design allows for installation in standard depth wall boxes
- Multiple color options available
- Efficient power supply meets the Department of Energy (DoE) Level VI no-load power requirement of 100mW max for external power supplies
- Side wire termination accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 2.677 in |
| Color | Light Almond |
| Amperage | 15.0 A |
| Indoor/Outdoor | Indoor |
| Number of USBs | 2.0 |
| Is Tamper-Resistant | Yes |
| NEMA Configuration Code | 5-15R |
| Outlet Type | Tamper-Resistant; USB-Charging |
| Number of Wires | 3.0 |
| Voltage | 125.0 V |
| Wall Plate Included | No |
| Features | USB-C Charging |
| Depth | 1.425 in |
|---|---|
| Width | 1.693 in |
| Product Line | Pass & Seymour |
| Number of Poles | Double Pole |
| Connection Location | Side Only |
| Number of Gangs | 1 |
| Wire Connection Type | Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
| Application Sector | Residential; Multi-Dwelling Unit; Commercial |
| Number of Receptacles | 2.0 |
| Wire Size | 14 - 10 AWG |
| USB Amperage | 6.0 A |
