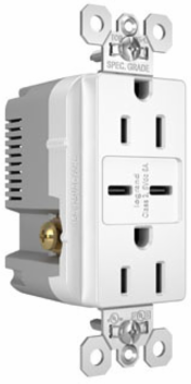

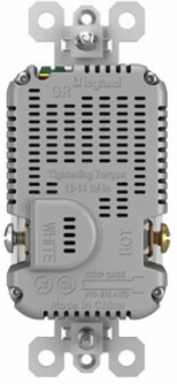

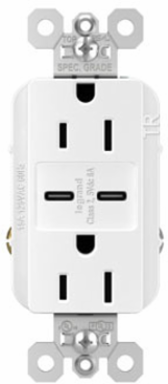

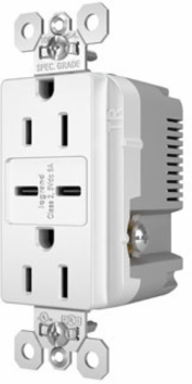

Pass & Seymour TR15USBCC6W 15A 125V Tamper-Resistant Receptacle with 2 USB Type-C Ports

MPN: TR15USBCC6W
UPC: 785007209815
PPN: P-S-TR15USBCC6W

$86.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

15A 125V Tamper-Resistant Receptacle with 2 USB Type-C Ports

Features

Overall 6A charging capability with smart current-sharing technology to allow for full 3A through a singular Type-C port
Posted terminal screws and external back-wire pressure plates for more productive and reliable terminations
With (2) USB Type-C ports to charge the latest mobile devices
USB Type-C ports carry a minimum rating of 10,000 insertions
Stainless steel auto-ground clips assure positive ground
Slim design allows for installation in standard depth wall boxes
Multiple color options available
Efficient power supply meets the Department of Energy (DoE) Level VI no-load power requirement of 100mW max for external power supplies

Documentation & Downloads

Specifications

Key Specifications

Depth	1.425 in
Height	2.677 in
Width	1.693 in
Number of Gangs	1
USB Amperage	6.0 A
Indoor/Outdoor	Indoor
Wall Plate Included	No
Is Tamper-Resistant	Yes
Number of Receptacles	2.0
Outlet Type	Tamper-Resistant
Connection Location	Side Only
Application Sector	Residential
Warranty Type	1-Year Limited Warranty
Color	White

Amperage	15.0 A
Voltage	125.0 V
Country of Origin	China
Number of USBs	2.0
Number of Wires	3.0
Wire Size	14 - 10 AWG
Features	USB-C Charging
Outlet Type	USB-Charging
Number of Poles	Double Pole
Application Sector	Commercial
NEMA Configuration Code	5-15R
Wire Connection Type	Screw Terminals
Application Sector	Multi-Dwelling Unit
Product Line	Pass & Seymour
