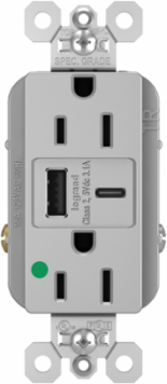

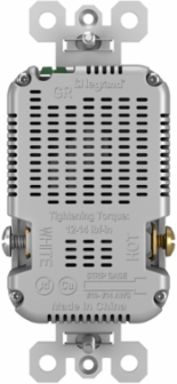

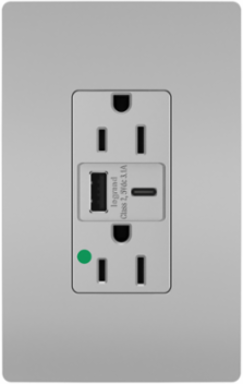

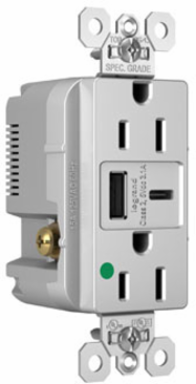

Pass & Seymour TR15HUSBACGRY 15A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, 3.1A USB Ports, Gray
- MPN: TR15HUSBACGRY
- UPC: 785007181777
- PPN: P-S-TR15HUSBACGRY
CAD
$77.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
15A 125V Hospital-Grade Tamper-Resistant Duplex Receptacle, 3.1A USB Ports, Gray
Features
- Overall 3.1A charging capability with smart current-sharing technology to allow for full 3.1A through a singular port.
- Slim design allows for installation in standard depth wall boxes.
- Posted terminal screws and external back-wire pressure plates for more productive and more reliable terminations.
- AC receptacles are tamper-resistant to meet NEC®. Patented shutter system – now with black ““invisi-shutters”” for an invisible effect preferred by end-users – helps prevent improper insertion of foreign objects.
- Multiple color options available.
- Reinforced nylon USB Type-A ports to withstand abuse over the life of the product.
- Stainless steel auto-ground clips assure positive ground.
- Efficient power supply meets the Department of Energy (DoE) Level VI no-load power requirement of 100mW max for external power supplies.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.425 in |
|---|---|
| Amperage | 15.0 A |
| Voltage | 125.0 V |
| Standard | FEDSPEC |
| Number of USBs | 2.0 |
| USB Wattage | 15.0 W |
| Indoor/Outdoor | Indoor |
| Wall Plate Included | No |
| Features | USB-C Charging |
| Outlet Type | USB-Charging |
| Outlet Type | Hospital Grade |
| Outlet Type | Tamper-Resistant |
| Application Sector | Healthcare |
| NEMA Configuration Code | 5-15R |
| Warranty Type | 1-Year Limited Warranty |
| Product Line | Pass & Seymour |
| Height | 2.677 in |
|---|---|
| Width | 1.693 in |
| Country of Origin | China |
| Number of Gangs | 1 |
| USB Amperage | 3.1 A |
| Number of Wires | 3.0 |
| Wire Size | 14 - 10 AWG |
| Features | USB-A Charging |
| Is Tamper-Resistant | Yes |
| Number of Receptacles | 2.0 |
| Number of Poles | Double Pole |
| Application Sector | Commercial |
| Connection Location | Side Only |
| Wire Connection Type | Screw Terminals |
| Color | Gray |
