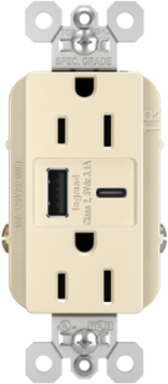

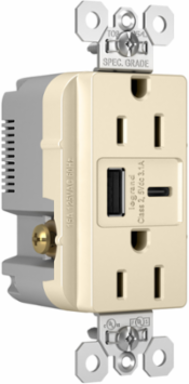

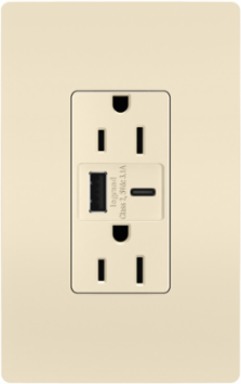

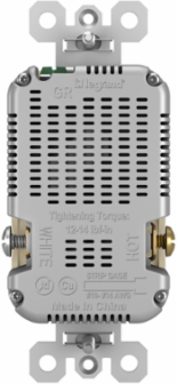

Pass & Seymour TR15USBACLA 15A Tamper-Resistant Duplex Receptacle with USB Ports, Light Almond
- MPN: TR15USBACLA
- UPC: 785007181517
- PPN: P-S-TR15USBACLA
- UNSPSC: 39121406
CAD
$74.56
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
15A Tamper-Resistant Duplex Receptacle with USB Ports, Light Almond
Features
- Protects children: patented shutter system helps prevent improper insertion of foreign objects
- Meets National Electrical Code® Tamper-Resistant requirement
- Conducts an automatic test every three seconds, ensuring it’s always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced.
- It also has our proven SafeLock® Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected
- High-impact-resistant thermoplastic construction with tri-drive terminal screws
- Side wire termination accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 2.677 in |
| Color | Light Almond |
| Amperage | 15.0 A |
| Indoor/Outdoor | Indoor |
| Number of USBs | 2.0 |
| Features | USB-A Charging; USB-C Charging |
| Standard | FEDSPEC |
| Application Sector | Commercial; Multi-Dwelling Unit; Residential |
| Voltage | 125.0 V |
| Number of Gangs | 1 |
| USB Wattage | 15.0 W |
| Warranty Type | 1-Year Limited Warranty |
| Wire Size | 14 - 10 AWG |
| Depth | 1.425 in |
|---|---|
| Width | 1.693 in |
| Product Line | Pass & Seymour |
| Number of Poles | Double Pole |
| Number of Receptacles | 2.0 |
| USB Amperage | 3.1 A |
| Outlet Type | Tamper-Resistant; USB-Charging |
| Number of Wires | 3.0 |
| Wall Plate Included | No |
| Is Tamper-Resistant | Yes |
| NEMA Configuration Code | 5-15R |
| Connection Location | Side Only |
| Wire Connection Type | Screw Terminals |
