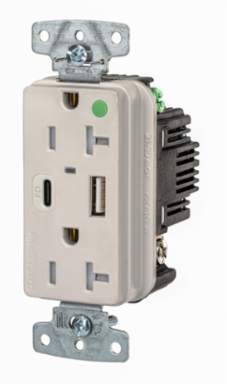

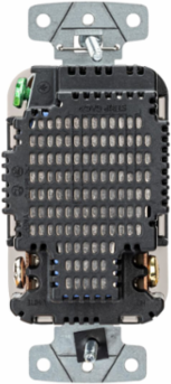

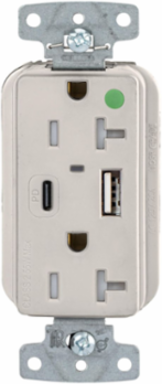

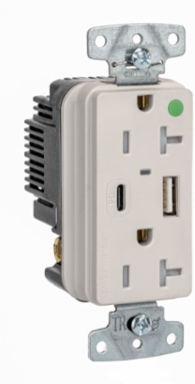

Hubbell Wiring Device-Kellems USB8300ACPDLA Tamper Resistant 2-Pole 3-Wire NEMA 5-20R Receptacle with USB 55W Power Delivery, Light Almond
- MPN: USB8300ACPDLA
- UPC: 783585723129
- PPN: HBL-USB8300ACPDLA
- UNSPSC: 39121406
CAD
$105.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tamper Resistant Hospital Grade Receptacle, 2-Pole 3-Wire Grounding, 1 Type "C" Power Delivery, 1 Type "A" Standard 5V
Features
- High Power 55 Watt USB Power Delivery 3.0 Standard, 5 Volt USB BC1.2 Output
- Combination Ports, One Type A, One Power Delivery Type C
- Tamper Resistant Hospital Grade Duplex Compatible
- USB Ports Rated 10,000 Cycles
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Width | 2.100 in |
| Color | Light Almond |
| Number of Poles | 2-Pole |
| Standard | NEMA 5-20R, USB PD 3.0, USB BC1.2 |
| Voltage Rating | 125 V |
| General Literature Asset 2 Display Text | FREQUENTLY ANSWERED QUESTIONSUSB-C Power Delivery Receptacles |
| Number Of Poles | 2-Pole |
| Style | Style Line Decorator |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Series | Hospital Grade USB Charger |
| BOX SIZE | 4.100x10.900x4.350 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585723129 |
| Case Weight | 22.450 lb. |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Current / Amperage Rating | 20 A |
|---|---|
| Industry Standard(s) | NEMA 5-20R, USB PD 3.0, USB BC1.2 |
| NEMA Rating | 5-20R |
| Number of Wires | 3-Wire |
| Type | Tamper Resistant USB |
| General Literature Asset 1 Display Text | USB Power Delivery Receptacles |
| Nema Rating | 5-20R |
| Number Of Wires | 3-Wire |
| Class Code | A04 |
| Harmonization Code | 8536698000 |
| Sub Class Code | A04A062 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 |
| Pallet Height | 50.000 in |
| Pallet Weight | 1387.000 lb. |
| NAICS Code | 335931A102 |
