Documentation & Downloads

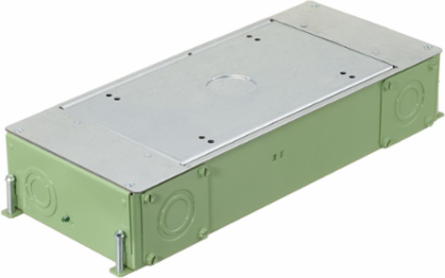

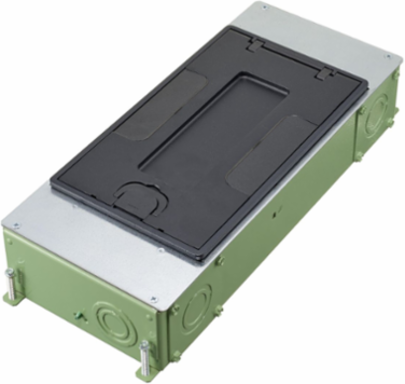

Hubbell Premise Wiring CFB2G30CRE Recessed 2-Gang Concrete Floorbox, 16.27 x 6.62 x 3 Inch, Corrosion Resistant
- MPN: CFB2G30CRE
- UPC: 783585695211
- PPN: HBL-CFB2G30CRE
- UNSPSC: 39121307
CAD
$472.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SystemOne ETERNAL™ Series Concrete Floorboxes, Galvanized Stamped Steel Box, Recessed, 2-Gang CFB E-Series Box for Rectangular Covers, 3.00" Minimum Depth of Pour, Corrosion Resistant Paint
Features
- Corrosion-Resistant Painted Recessed 2-Gang Rectangular Cover Floorbox
- For Use In Concrete Floors
- 3.75" Deep Wiring Chambers
- External High Capacity Feed-Thru Hubs Sold Separately
- 3.00" Minimum Depth of Pour

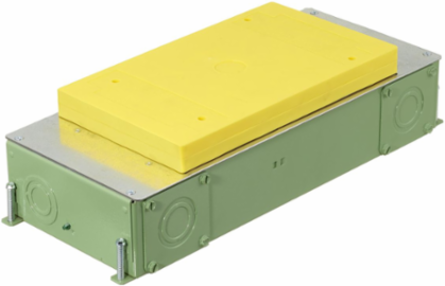

- Box Includes Installation Cover & 1/2" Prepour Cap
- Each Gang Includes (1) 6" Solid #12 AWG Conductor Grounding Pigtail
- Pregalvanzied Stamped Steel Box with Corrosion Resistant Paint; Concentric Knock-Outs;High-Capacity Feed-Through (External Hubs Purchased Separately)
Documentation & Downloads
Specifications
Additional
- Size
- 16.27 in x 6.62 in x 3.00 in
- Length
- 16.27 in
- Material
- Galvanized Stamped Steel (16 gauge galvanized steel)
- Mounting Type
- Field Installed
- Number of Gang(s)
- 2-Gang
- Cable Entry
- Through Cover
- Trade Size Knock-Outs
- 2x ½", ¾", 1", 1¼"
- Wiring Chamber Volume
- 2 x 65.5 in³
- Industry Standard(s)
- cULus; UL514
- Buy American Compliant
- Yes
Height3.00 in
Width6.62 in
FinishGreen corrosion resistant epoxy paint
Mounting MethodScrew Mount Device Mounting Plates
TypeRecessed
Device Chamber Grounding6 in #12 AWG solid copper wire
Wiring Chamber Depth3.75 in
CompliancecULus Listed, UL 514A Listed
ColorMetallic/Green Epoxy Paint
ApplicationFor Use in Concrete Floors
