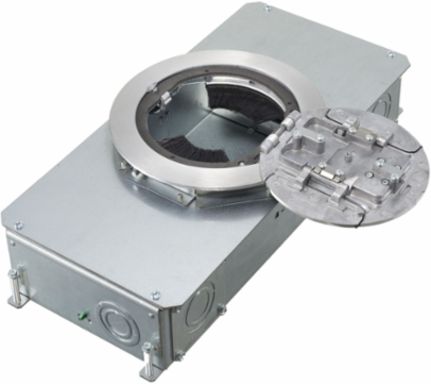

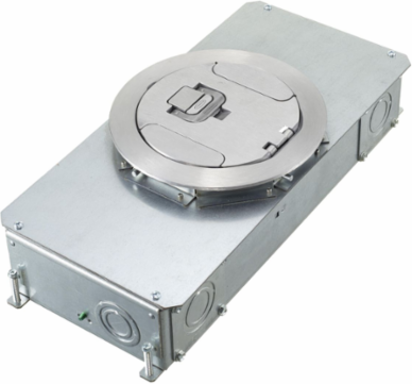

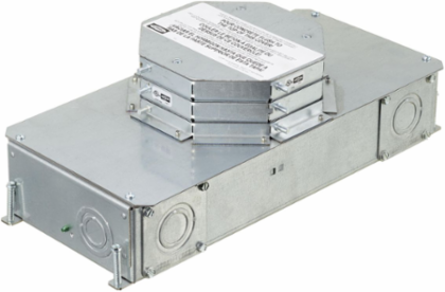

Hubbell Premise Wiring CFB2G30RE Recessed 2-Gang Concrete Floorbox, 3.75 Inch Minimum Depth, Galvanized Steel
- MPN: CFB2G30RE
- UPC: 783585695228
- PPN: HBL-CFB2G30RE
- UNSPSC: 39121307
CAD
$472.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SystemOne ETERNAL™ Series Concrete Floorboxes, Galvanized Stamped Steel Box, Recessed, 2-Gang CFB E-Series Box for Round Covers, 3.75" Minimum Depth of Pour
Features
- Recessed 2-Gang Round Cover Floorbox
- For Use In Concrete Floors
- 3.75" Deep Wiring Chambers
- External High Capacity Feed-Thru Hubs Sold Separately
- 3.75" Minimum Depth of Pour

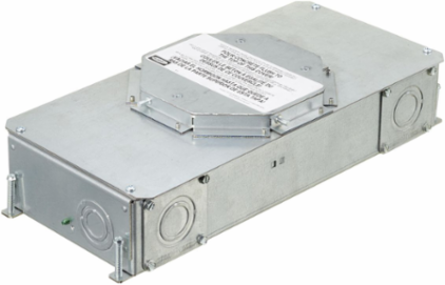

- Box Includes Installation Cover
- Each Gang Includes (1) 6" Solid #12 AWG Conductor Grounding Pigtail
- Pregalvanzied Stamped Steel Box; Concentric Knock-Outs;High-Capacity Feed-Through (External Hubs Purchased Separately)
Documentation & Downloads
Specifications
Additional
- Size
- 16.27 in x 7.32 in x 3.75 in
- Mounting Type
- Field Installed, Screw Mount Device Mounting Plates
- Type
- Recessed Above Grade
- Box Finish
- Natural Metallic
- Special Features
- Pregalvanized Stamped Steel Box; Concentric Knock-Outs; High-Capacity Feed-Through (External Hubs Purchased Separately)
- Device Chamber Grounding
- 6 in #12 AWG solid copper wire
- Wiring Chamber Depth
- 3.75 in
- Compliance
- cULus Listed, UL 514A Listed
- Industry Standard(s)
- cULus, UL514
Box Material16 gauge galvanized stamped steel
Mounting MethodScrew Mount Device Mounting Plates
Number of Gang(s)2-Gang
Cable EntryThrough Cover
Trade Size Knock-Outs(2) 1/2 in, 3/4 in, 1 in, 1 1/4 in
ApplicationFor Use in Concrete Floors
Wiring Chamber Volume(2) 65.5 in³
StandardcULus, UL514
