Hubbell Premise Wiring

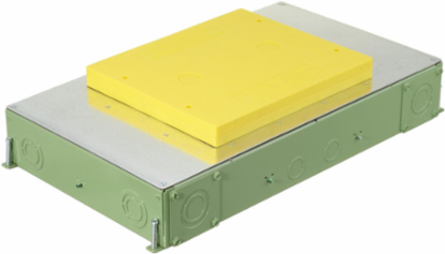

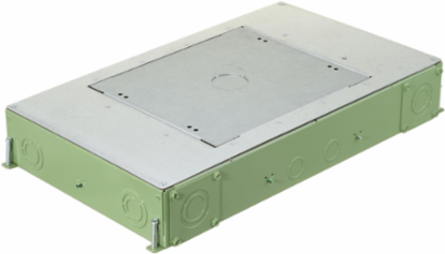

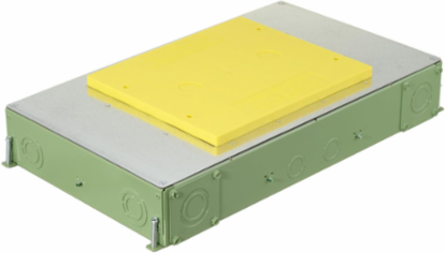

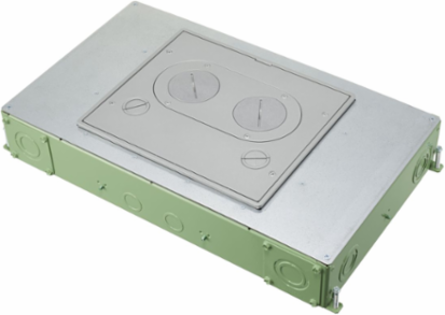

Hubbell Premise Wiring CFB6G30CRE 6-Gang Recessed Concrete Floorbox, 19.68 x 11.54 x 3 Inch Depth

6-Gang Recessed Concrete Floorbox, 19.68 x 11.54 x 3 Inch Depth
6-Gang Recessed Concrete Floorbox, 19.68 x 11.54 x 3 Inch Depth
6-Gang Recessed Concrete Floorbox, 19.68 x 11.54 x 3 Inch Depth
6-Gang Recessed Concrete Floorbox, 19.68 x 11.54 x 3 Inch Depth
  • MPN: CFB6G30CRE
  • UPC: 783585695358
  • PPN: HBL-CFB6G30CRE
  • UNSPSC: 39121307

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$538.72/ EA

Description

SystemOne ETERNAL™ Series Concrete Floorboxes, Galvanized Stamped Steel Box, Recessed, 6-Gang CFB E-Series Box for Rectangular Covers, 3.00" Minimum Depth of Pour, Corrosion Resistant Paint

Features

  • Corrosion-Resistant Painted Recessed 6-Gang Rectangular Cover Floorbox
  • For Use In Concrete Floors
  • (2) 3.75" & (4) 2.50" Deep Wiring Chambers
  • External High Capacity Feed-Thru Hubs Sold Separately
  • 3.00" Minimum Depth of Pour
  • Box Includes Installation Cover & 1/2" Prepour Cap
  • Each Gang Includes (1) 6" Solid #12 AWG Conductor Grounding Pigtail
  • Pregalvanzied Stamped Steel Box with Corrosion Resistant Paint; Concentric Knock-Outs;High-Capacity Feed-Through (External Hubs Purchased Separately)

Specifications

Application
For Use in Concrete Floors
Mounting Type
Field Installed
Length
19.68 in
Height
3.00 in
Box Material
16 gauge galvanized steel
Top Mounting Plates
16 gauge galvanized steel
1/2 Inch Prepour Cover
Yellow Plastic
Wiring Chamber Volumes
(2) 108.5 in³ ends, (4) 33.0 in³ sides
Color
Metallic/Green Epoxy Paint
Industry Standard(s)
cULus; UL514
Type
Recessed
Number of Gang(s)
6-Gang
Mounting MethodScrew Mount Device Mounting Plates
Size19.68 in x 11.54 in x 3.00 in
Width11.54 in
MaterialGalvanized Stamped Steel
Box FinishGray corrosion resistant epoxy paint
Flush Prepour Cover16 gauge galvanized steel
Device Chamber Grounding Wire6 in #12 AWG solid copper
Trade Size Knock-Outs(4) 1/2 in, 3/4 in, 1 in, 1 1/4 in
CompliancecULus Listed, UL 514A Listed
StandardcULus; UL514
Style6-Gang
Buy American CompliantYes
