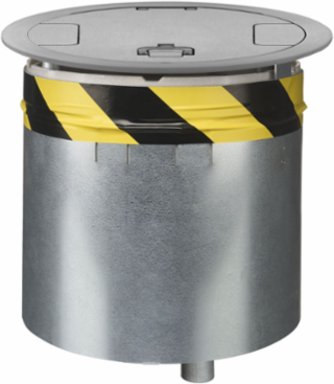

Hubbell Premise Wiring S1R10PTZALU 10 Inch Fire-Rated Poke-Through Kit, Includes (2) Receptacles
- MPN: S1R10PTZALU
- UPC: 783585548265
- PPN: HBL-S1R10PTZALU
- UNSPSC: 39121328
CAD
$3968.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Fire Rated Poke Throughs, Recessed 10" Series, Kit, Includes (1) S1R10PTFIT, (1) S1R10CVRALU, (2) S1R10PSPZ, (2) S1R10PSPREPBRKT, (4) S1R10CBFPT, (3) S1R10PBFBLANK, (1) S1R10PBF075, (1) S1R10CENTERDIV, (1) S1R10PERIMDIV
Features
- For use with a 10.00” to 10.12” Drilled or Formed Concrete Round Hole
- Up to 2 Hour Fire Rating
- Step Down Installation
- (2) 20A pre-wired receptacles
Documentation & Downloads
Specifications
Additional
- Number of Outlets
- 2 pre-wired 20A duplex, 24 in. leads
- Mounting Type
- 10 in. Core Hole
- Width
- 14.4 in.
- Cover Material
- Cast Aluminum
- Fitting Materials
- Pre-Galvanized Steel, Intumescent
- Sub-Plates and Brackets Material
- Pre-Galvanized Steel, White Painted
- Maximum Copper Cross Section - Perimeter Chamber
- 0.0408 sq. in.
- Cover Load Rating
- 1,000 lbs static load (3 in. mandrel)
- Cable Entry
- Through Cover
- Type
- 10 in. Recessed Rated Poke Through Kit
- Country of Origin
- US
- Application
- 10 in. Fire-Rated Poke-Through Series
- Material - Mounting Hardware
- Mounting Hardware Included
- Application - For Use On
- Concrete
Fire Rating1-2 Hour
Hole Size10.00 to 10.12 in.
MaterialFabricated
Cover FinishBrushed
Bottom Feed Plates and Dividers MaterialPre-Galvanized Steel
Maximum Copper Cross Section - Center Chamber0.0978 sq. in.
Cover Connection TypeRecessed
Minimum Concrete Floor Thickness2.25 in.
StyleFRPT Kits
ColorAluminum
Industry Standard(s)cULus Listed, Meets ADA Standards, UL 514A Listed
Plate StyleAccepts S1R10xx Series
Sub BrandSystemOne Recessed
