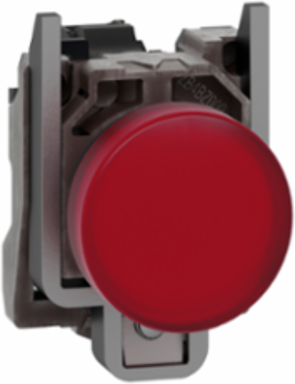

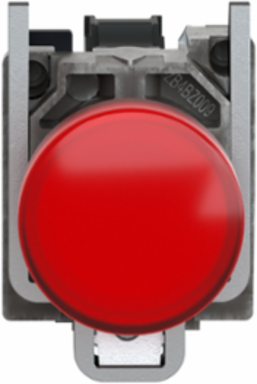

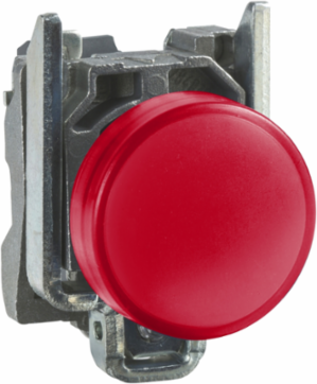

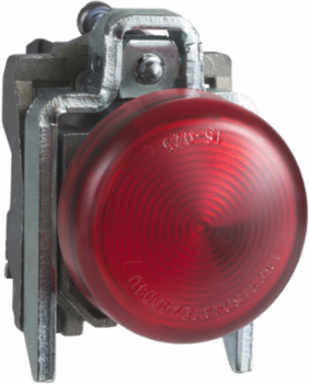

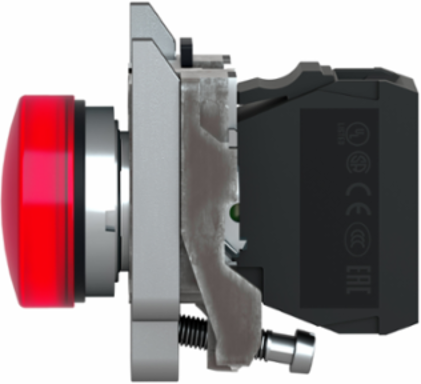

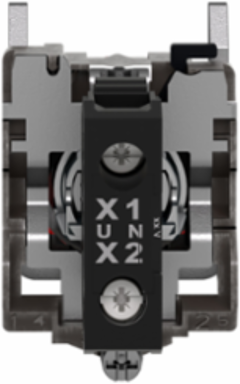

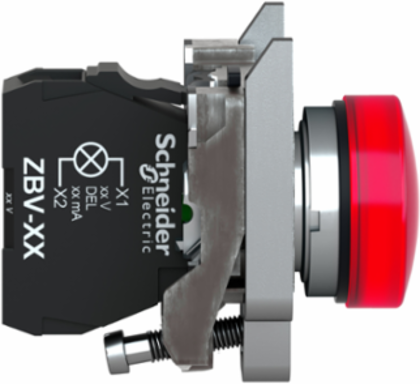

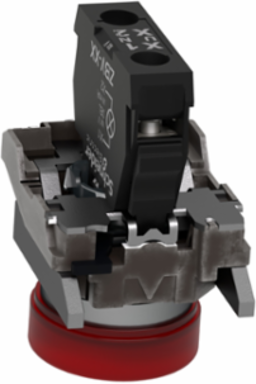

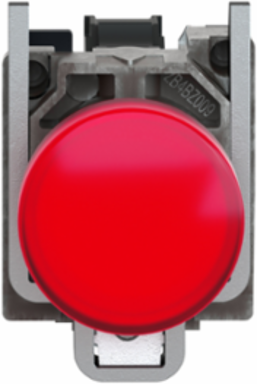

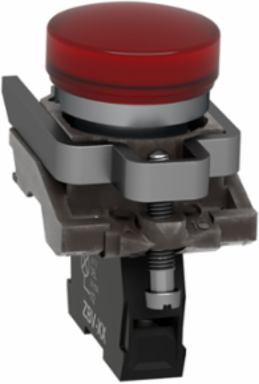

Schneider Electric XB4BVB4 Harmony XB4 Red Pilot Light 22mm Universal LED IP66 Rated
- MPN: XB4BVB4
- PPN: SCH-XB4BVB4
CAD
$67.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4 plain lens modular red pilot light is supplied with 24V AC/DC, uses a universal LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features

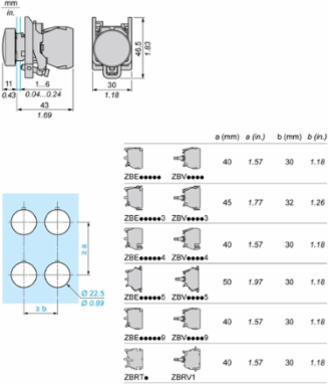

- The Schneider Electric XB4BVB4 features a universal 22mm (22.5 mm recommended) mounting diameter, ensuring a seamless drop-in fit for standard industrial control panel cut-outs. As a complete modular assembly from the trusted Harmony XB4 range, it integrates flawlessly with existing metal switchboards, motor control centers (MCCs), and operator consoles without requiring custom modifications.
- Engineered for modern low-voltage control circuits, this pilot light operates on a rated supply voltage of 24V AC/DC at 50/60 Hz. With a highly efficient current consumption of just 18 mA, it provides bright status signaling without placing a heavy drain on your auxiliary power supplies or overriding sensitive PLC output cards.
- Equipped with a protected integral LED and a plain red lens, this indicator delivers sharp, steady visual clarity that can be easily distinguished at a distance, even in high-ambient-light environments. The maintenance-free universal LED block boasts a massive 100,000-hour service life at 25 C, eliminating the frequent downtime and labor costs associated with swapping out traditional incandescent bulbs.
- Designed for punishing industrial automation environments, this heavy-duty unit features a chromium-plated metal bezel and a rugged Zamak fixing collar that provides high vibration (5 gn) and shock resistance. It carries elite IP66, IP67, IP69, and IP69K ingress ratings, alongside UL Type 4X/13 protection, meaning it remains completely dust-tight and fully operational even under 1015 psi of high-pressure, hot-water washdowns.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Mexico, United States |
|---|
| Depth | 54 mm |
|---|
Physical Attributes
| Cap Operator Or Lens Color | red |
|---|
| Light Source Color | red |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | no, 1 |
| Cap Operator Or Lens Color | red |
| [Us] Rated Supply Voltage | 24 V, 24 V AC/DC 50/60 Hz |
| Carbon Footprint Of The Distribution Phase [A4] | 0.010461165048543688, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.014819417475728154 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.2 kg CO2 eq., 0.1760704225352112 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2308026EN |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 36 % |
| Bulb Base | integral LED |
| Current Consumption | 18 mA |
| Electrical Shock Protection Class | class I conforming to IEC 60536 |
| Fixing Collar Material | zamak |
| Head Type | standard |
| Light Source | universal LED |
| Operator Additional Information | with plain lens |
| Product Or Component Type | pilot light |
| Protective Treatment | TH |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Returnability | Yes |
| Service Life | 100000 h at rated voltage and 25 °C |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Vibration Resistance | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Light Source Color | red |
| Pep Code | ENVPEP2308026EN |
| Pep Verification Date | 2024-02-18 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Height Nominal | 47 mm |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Cap/Operator Or Lens Colour | red |
| Nbr. Of Units In Pkg. | 1 |
| Product Repair Index - Dam Document Id | XB4BS8442-ENVREPAIR-A-EN |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Supply Voltage | 24 V |
| Certificate Agency | CSA, UL Listed |
| Terminals Description Iso N°1 | (X1-X2)PL, (X1-X2)PL, (X1-X2)PL, (X1-X2)PL |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.19918446601941747, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.6 kg CO2 eq., 0.6003009708737864 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Product Repair Index Dam Doc | XB4BS8442-ENVREPAIR-A-EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 17 % |
| Bezel Material | chromium plated metal |
| Compatibility Code | XB4 |
| Device Short Name | XB4 |
| Electromagnetic Emission | class B IEC 55011 |
| Gcr Bridge | XB4BVCUST03 |
| Important Message | A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks |
| Mounting Diameter | 22.5 mm |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Repair Index | A |
| Range Of Product | Harmony XB4 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2 |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Signaling Unit Head | round |
| Signalling Type | steady |
| Supply Voltage Limits | 19.2-30 V DC21.6-26.4 V AC |
| Total Lifecycle Carbon Footprint | 1 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Connections Terminals 8 Connections Terminals | screw clamp terminals |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | XB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards.. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 85 |
| Width Nominal | 30 mm |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1 |
| Package Weight(Lbs) | 78 g |
| Take-back | No |
| Customs Code | 8531809051 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP67, IP69, IP69K |
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 1.000836441952687 |
| Environmental Disclosure | ENVPEP2308026EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-02-18 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | NEMA 13, NEMA 4X, UL type 4X/13 |
| Recycled Metal Content At Cr Level | 17 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2308026EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2308026EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | pilot light |
|---|
| Range Of Product | Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC000272 |
|---|
| ETIM 9 | EC000272 |
|---|
Surge Protection And Filtering Attributes
| Surge Withstand | 1 kV IEC 61000-4-5 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
