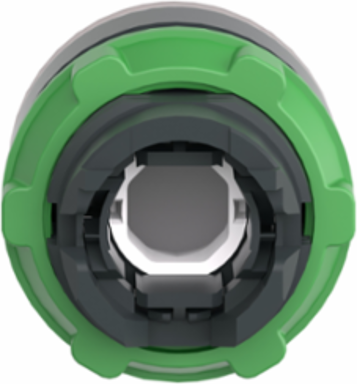

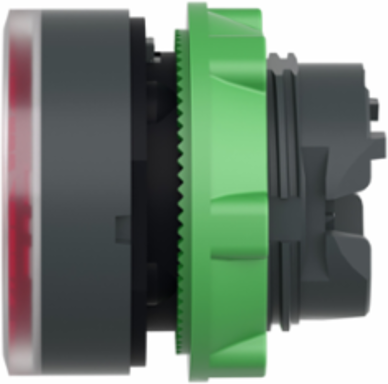

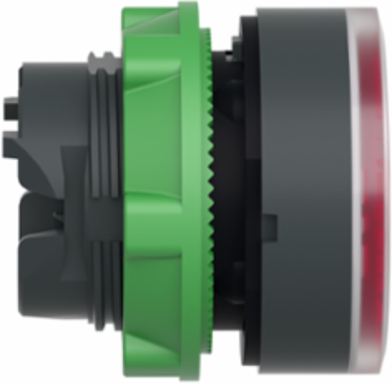

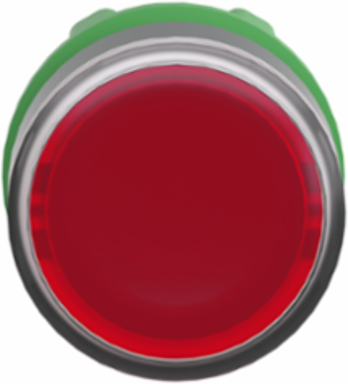

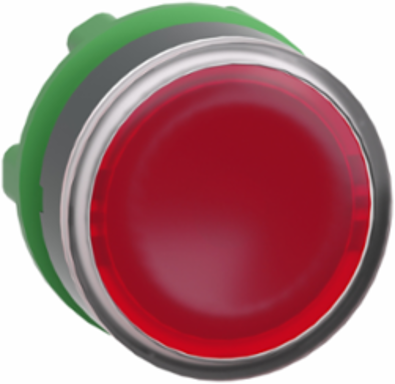

Schneider Electric ZB5AW343 Head for illuminated push button, Harmony XB5, plastic, red flush, 22mm, universal LED, spring return, plain lens
Schneider Electric ZB5AW343 Head for illuminated push button, Harmony XB5, plastic, red flush, 22mm, universal LED, spring return, plain lens
- MPN: ZB5AW343
- PPN: SCH-ZB5AW343
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$13.94/ EA
Description
This Harmony XB5, plain lens illuminated red flush head for integral LED operates with a spring return / impulse mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Specifications
Environment
- Product Certifications
- GL || LROS (Lloyds register of shipping) || BV || CSA || UL listed || DNV
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Overvoltage Category
- class II IEC 60536
- Protective Treatment
- TC
Ik Degree Of ProtectionIK05 conforming to EN 50102
StandardsUL 508 || GB 14048.5 || JIS C8201-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Complementary
- Main Group
- illum push-button
- Net Weight
- 0.017 kg
- Device Presentation
- basic sub-assemblies
- Cap/Operator Or Lens Colour
- red
- Marking
- unmarked
- Cad Overall Width
- 29 mm
- Group Of Product
- flush push integral LED
Electrical Composition CodeM1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED
Cad Overall Height29 mm
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Mechanical Durability10000000 cycles
Station NameXALD 1...5 cut-outs || XALK 2...5 cut-outs
Cad Overall Depth30 mm
Key Specifications
- Operator Additional Information
- with plain lens
- Mounting Diameter
- 22 mm
- Product Or Component Type
- head for illuminated push-button
- Head Type
- standard
- Bezel Material
- dark grey plastic
- Product Compatibility
- universal LED
Range Of ProductHarmony XB5
Type Of Operatorspring return
Shape Of Signaling Unit Headround
Sale Per Indivisible Quantity1
Operator Profilered flush, unmarked
Device Short NameZB5
