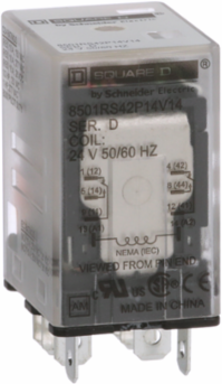

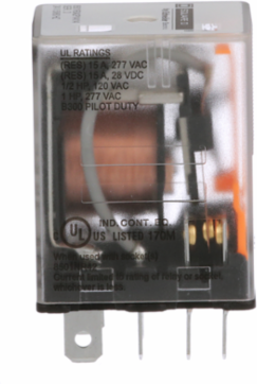

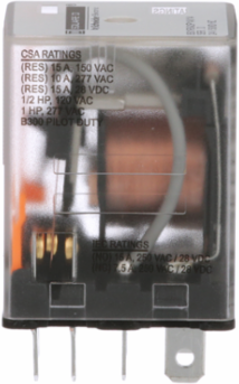

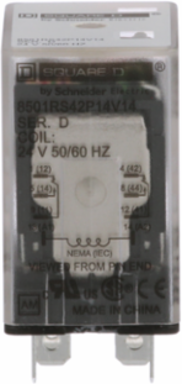

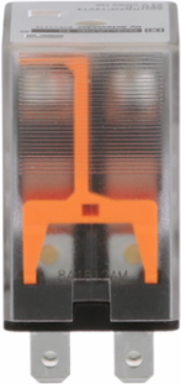

Square D 8501RS42P14V14 Miniature Relay DPDT 1 HP at 277 VAC 15A Resistive 24 VAC Coil
Square D 8501RS42P14V14 Miniature Relay DPDT 1 HP at 277 VAC 15A Resistive 24 VAC Coil
- MPN: 8501RS42P14V14
- UPC: 785901131335
- PPN: SCH-8501RS42P14V14
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$67.66/ EA
Description
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR42 or 8501NR42B relay socket. Relay is available with DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VAC nonreplaceable coil. Relay has a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Specifications
Environment
- Product Certifications
- UL listed || UL recognized || CSA || CE
Ambient Air Temperature For Operation-40-131 °F
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Environmental DisclosureENVPEP1511008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- [Uc] Control Circuit Voltage
- 24 V AC
- Local Signalling
- green indicator relay energised LED
- Contacts Material
- silver alloy, gold flashed
- Shape Of Pin
- spade
- Rated Breaking Capacity
- 3 A 120 V AC inductive control circuit UL 508 || 1.5 A 240 V AC inductive control circuit UL 508 || 15 A 120 V AC resistive control circuit UL 508 || 10 A 277 V AC resistive control circuit UL 508 || 15 A 28 V DC resistive control circuit UL 508
- Width
- 21 mm
- Product Compatibility
- 8501NR42
- Control Type
- without test button
Height27.3 mm
Mounting Supportsocket
Rated Power In Hp0.5 120 V AC || 1 277 V AC
Switch FunctionDPDT
Operating Time20 ms - pick-up || 20 ms - drop-out
Depth41.8 mm
Maximum Switching Voltage300 V AC || 30 V DC
Specifications
- Relay Type
- standard
- Product Or Component Type
- Miniature Relay
Range Of Product8501R
