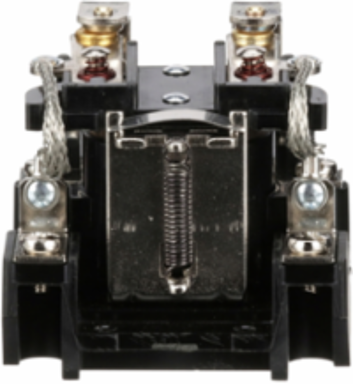

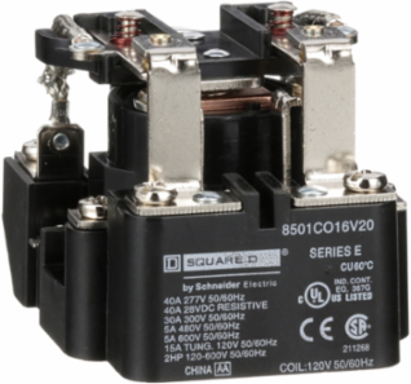

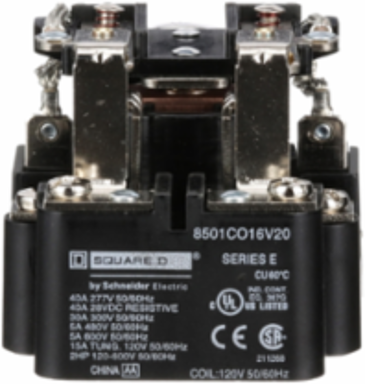

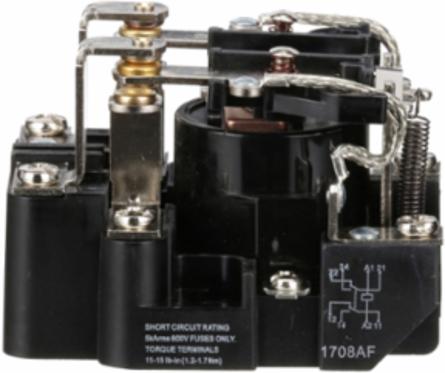

Square D 8501CO16V20 Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil

Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil
Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil
Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil
Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil
Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil
Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil
Power Relay, Type C, 2 HP, 30A resistive at 300 VAC, SPDT, 2 normally open and 2 normally closed contact, 120 VAC coil
  • MPN: 8501CO16V20
  • UPC: 785901052135
  • PPN: SCH-8501CO16V20

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$108.91/ EA

Description

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPDT contact configuration with two normally open and two normally closed contact. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.

Specifications

Complementary Attributes

Line Rated Current
30 A
Rated Power In Hp
2.0 hp
Maximum Switching Voltage600 V AC
Uc Control Circuit Voltage120 V AC 50/60 Hz

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Certificate Agency
UL listed file E78351 CCN NLDX, CSA, CE
Local Publishable Date
2026-01-12
Stocking Flag
N
Weee Scope
Out
Scope Perimeter
At least in Europe
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
No
Tier Id
1
Function Option Id
STANDARD
Product Kit Identifier
N
Catalog Class
8501
Device Application
suited for controlling small single phase motors and other light loads
Hold In Power Consumption In Va
10-10 VA
Phase
1 phase
Product Or Component Type
power relay
Returnability
Yes
Switch Function
DPDT
Connections Terminals
screw clamp terminal
Pep Code
ENVPEP1705008EN
Pn
1

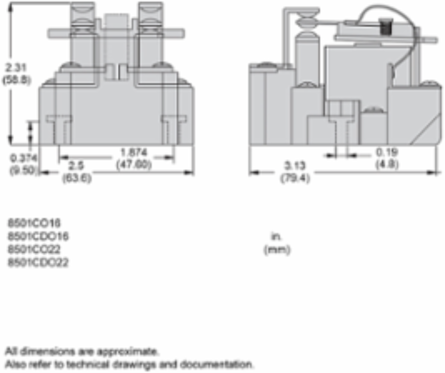

Width Nominal
2.5 in
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1918
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg GaugeAWG 10 copper

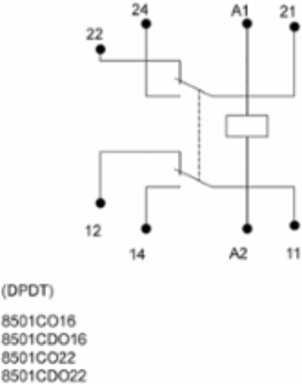

Contacts Type And Composition2 NO/2 NC
Device Short Nametype C
Mounting Supportpanel mounting
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductPower Relay 8501C
Sustainable PackagingNo
Tightening Torque11-15 lbf.in
Warranty In Months18
Offer Owner Code190786
Height Nominal3.12 in

Environment Attributes Main

Ambient Air Temperature For Operation
-22-122 °F, -22-122 °F
Reach Free Shvc
Yes
China Rohs Regulation
X
Mercury Free
Yes
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Environmental DisclosureENVPEP1705008EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1705008EN

General Attributes

Phase
1 phase
Range Of Product
Power Relay 8501C
Product Or Component Typepower relay

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Specifications

Country of Origin
China, United States
Depth2.31 in
