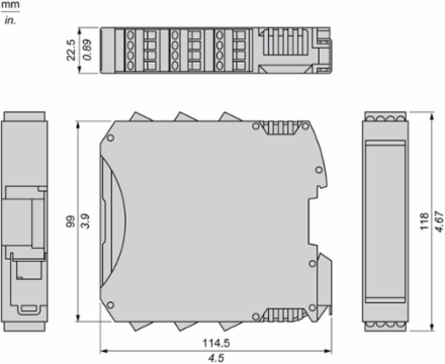

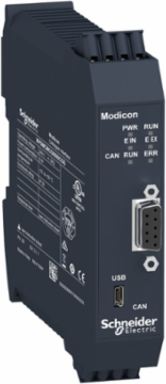

Schneider Electric XPSMCMCO0000COG Modicon MCM CANopen Diagnostic Expansion Module, 24V DC, IP20, 1 CANopen Port
- MPN: XPSMCMCO0000COG
- PPN: SCH-XPSMCMCO0000COG
CAD
$1143.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modicon MCM CANopen Diagnostic Expansion Module, 24V DC, IP20, 1 CANopen Port
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|
| Depth | 114.5 mm |
|---|
Communications & Management Attributes
| Communication Port Protocol | CANopen |
|---|
Complementary Attributes
| Maximum Cable Distance Between Devices | 2500 m, 1000 m, 750 m, 500 m, 250 m, 100 m, 50 m, 25 m |
|---|
Important Information Attributes
| Cable Cross Section | 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.5-1 mm² - 20 AWG...18 AWG flexible with cable end, with double bezel |
|---|---|
| Transmission Rate | 10 kbit/s, 20 kbit/s, 50 kbit/s, 100 kbit/s, 125 kbit/s, 250 kbit/s, 500 kbit/s, 800 kbit/s, 1 Mbit/s, autodetected |
| Certificate Agency | cULus, RCM, TÜV |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.5 kg CO2 eq., 0.47866606075528256 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 5 kg CO2 eq., 5.106589890664379 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | e |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Current Consumption | 0.125 mA |
| Electrical Connection | spring terminal |
| Insulation | 250 V AC between power supply and housing EN/IEC 61800-5-1 |
| Mounting Support | omega 35 mm DIN rail EN 50022 |
| Overvoltage Category | II |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quality Labels | CE |
| Returnability | No |
| Shock Resistance | 10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To enable communication and data exchange between safety controllers and fieldbus networks to 4W during 10 years at a 100% use rate. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 262.8 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 99 mm |
| [Us] Rated Supply Voltage | 24 V - 20...20 % DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Local Signalling | LED green PWR power ONLED green RUN operating, LED red E IN internal errorLED red E EX external errorLED green/red OP operatingLED green/red ERR communication error |
|---|---|
| Vibration Resistance | +/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.07466476661982983, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.16714574664454726, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 127 kg CO2 eq., 127.22144640918272 |
| Local Publishable Date | 2025-11-25 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1847 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Connector Type | male SUB-D 9 |
| Device Short Name | XPSMCM |
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to EN/IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to EN/IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to EN/IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3 |
| Method Of Access | server |
| Number Of Port | 1 |
| Power Dissipation In W | 3 W |
| Product Or Component Type | non-safe communication module |
| Range Of Product | Modicon MCM |
| Service Life | 20 year(s) |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 133 kg CO2 eq. |
| Pep Code | ENVPEP2606033_V1 |
| Pep Verification Date | 2026-06-22 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity mix; Consumption mix; Low voltage; 2022; Italy, IT |
| Energy Model - Use [B6] | Electricity mix; Consumption mix; Low voltage; 2022; Europe, EU-27 |
| Recyclability Potential In % | 21 |
| Width Nominal | 22.5 mm |
| Connections - Terminals | 2 spring clamp terminals, removable terminal block |
| Package Weight(Lbs) | 212.0 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C, -10-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2606033_V1 |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 10-95 % |
| Pep Verification Date | 2026-06-22 |
| Psr Version | PSR-0005-ed3-EN-2023 06 06 |
| Ambient Air Temperature For Storage | -20-85 °C, -20-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Carbon Footprint | 133.04851287386674 |
| Eu Rohs Directive | Compliant |
| Operating Altitude | 6561.68 ft (2000 m) |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2606033_V1 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | non-safe communication module |
|---|
| Range Of Product | Modicon MCM |
|---|
ETIM
| ETIM 8 | EC001423 |
|---|
| ETIM 9 | EC001423 |
|---|
