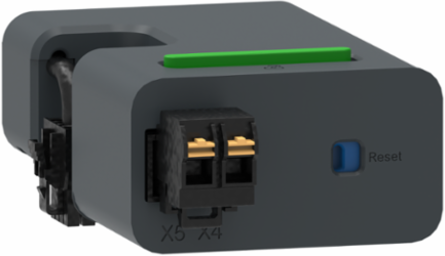

Schneider Electric LA9GRD01 Remote Wear Diagnostic Module, 1 NC Contact, -25 to 60 C Operating Temp
- MPN: LA9GRD01
- PPN: SCH-LA9GRD01
- UNSPSC: 39121529
CAD
$468.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These accessories are remote wear diagnostic module for TeSys Giga contactor. It outputs 1NC contact for continuous remote monitoring of contact wear by a contactor opening-speed algorithm. It could be better for optimizes maintenance by allowing you to replace contacts only when necessary. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.
Features
- Advanced Local & Remote Contact Wear Diagnostic feature for predictive maintenance
- Easy screw-less assembled optional device to show contact wear alarm status remotely
- Designed to meet needs of demanding applications built-in with advanced features and functionalities
- Less number of references, simple to select, choose means less inventory
- Simple and quick access of accessories and auxiliaries from the front, reduces total assembly and replacement time
- Modularity design and compact size for easy maintenance, short down times and less installation space consumption
- Unique QR code, quick access to complete product data, technical video, anti-counterfeit checking and instruction sheet
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 50 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | CB Scheme, CCC, cULus, UKCA, ATEX, EU-RO-MR by DNV-GL, EAC |
| Local Publishable Date | 2026-07-28 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2105013 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2121 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | LA9G |
| Mounting Location | top |
| Product Or Component Type | function module |
| Range | TeSys |
| Returnability | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 30 mm |
| Customs Code | 8517690000 |
| Halogen Free Status | Halogen free plastic parts product |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Connection Pitch | 5.08 mm |
| Function Available | remote alarm |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Range Of Product | TeSys G |
| Sustainable Packaging | Yes |
| Height Nominal | 91.5 mm |
| Nbr. Of Units In Pkg. | 1 |
| Ith Conventional Free Air Thermal Current | 5 A |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -60-80 °C, -60-80 °C |
| Halogene Performance | Halogen free plastic parts product |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2105013EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Operating Altitude | 9842.52 ft (3000 m) without derating5000 m with derating factor |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2105013EN |
| Ambient Air Temperature For Operation | -25-60 °C, -25-60 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Circularity Profile | ENVEOLI2105013 |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | function module |
|---|
| Range Of Product | TeSys G |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|---|
| ETIM 10 | EC002498 |
| ETIM 9 | EC002498 |
|---|
