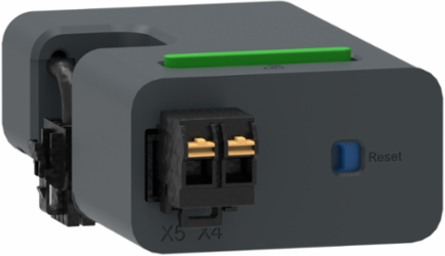

Schneider Electric LA9GRD10 Remote Wear Diagnostic Module, 1 NO Contact, -25°C to 60°C Operating Temp

Remote Wear Diagnostic Module, 1 NO Contact, -25°C to 60°C Operating Temp
  • MPN: LA9GRD10
  • PPN: SCH-LA9GRD10

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$438.42/ EA

Description

These accessories are remote wear diagnostic module for TeSys Giga contactor. It outputs 1NO contact for continuous remote monitoring of contact wear by a contactor opening-speed algorithm. It could be better for optimizes maintenance by allowing you to replace contacts only when necessary. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Specifications

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2105013
Pvc Free
Yes
China Rohs Regulation
X
Eu Rohs Directive
Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2105013
Halogen Content PerformanceHalogen free plastic parts product

Complementary

Height
91.5 mm
Auxiliary Contact Composition
1 NO
Net Weight
0.1 kg
Function Available
remote alarm
Width
30 mm
[Ith] Conventional Free Air Thermal Current5 A
Connection Pitch5.08 mm
Mounting Locationtop
Quantity Per Setset of 1
Depth50 mm

Environment

Ambient Air Temperature For Operation
-25-60 °C
Ip Degree Of Protection
IP20 IEC 60529
Ambient Air Temperature For Storage
-60-80 °C
StandardsEN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.5
Pollution Degree3 IEC 60947-1
Operating Altitude3000 m without derating || 5000 m with derating factor

Specifications

Product Or Component Type
function module
Device Short Name
LA9G
RangeTeSys
