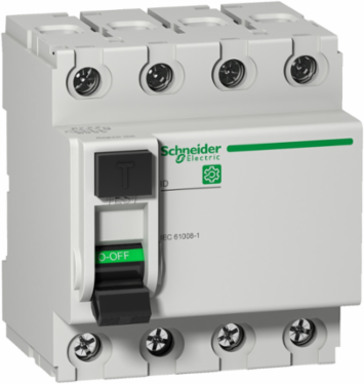

Schneider Electric M9R14440 Multi9 ID RCCB, 4P, 40A, 300mA, IP20, DIN Rail Mountable
- MPN: M9R14440
- PPN: SCH-M9R14440
CAD
$513.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This is a Multi ID residual current circuit breaker (RCCB). It is a 4P circuit breaker with In rated current of 40A, AC type protection class and a 300mA earth leakage sensitivity. This product protects against electrical shock by indirect contact and fire hazards. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 400A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The electrical endurance is up to 2000 cycles. The mechanical endurance is up to 20000 cycles. The Ue operational voltage is 380VAC to 415VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 73mm. The weight is 0.45kg. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 60°C.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
Depth73 mm
Physical Attributes
- Color
- Gray
Wire Stripping Length15 mm for top or bottom connection
Complementary Attributes
- Line Rated Current
- 40 A
Rated Breaking And Making CapacityIdm 400 A EN/IEC 61008-1
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Connection Pitch
- 18 mm between phase and neutral, 18 mm between phases
- Connections - Terminals
- tunnel type terminal (top or bottom)1-35 mm² - rigid, tunnel type terminal (top or bottom)1-25 mm² - flexibletunnel type terminal (top or bottom): 3 cable(s) 16-16 mm² - rigid, tunnel type terminal (top or bottom): 3 cable(s) 10-10 mm² - flexible, tunnel type terminal (top or bottom)1-25 mm² - flexible with ferrule
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1.05323777240707, 1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 4.11100827860012
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Use Carbon Footprint
- 58.165
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 0844
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Contact Position Indicator
- yes
- Device Application
- distribution
- Electrical Durability
- 2000 cycles
- Energy Efficiency Optimized
- False
- Locking Options Description
- padlocking device
- Mounting Mode
- clip-on
- Network Frequency
- 50 Hz
- Neutral Position
- left
- Power Losses Per Pole
- 3.6 W
- Product Name
- Multi9 ID
- Range
- Multi9
- Residual Current Tripping Technology
- voltage independent
- Software Version
- v5.9.4
- Tightening Torque
- 3.5-3.5 N.m top or bottom
- Total Power Losses
- 10.8 W
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Rated Current 3
- 40 A
- Pep Code
- ENVPEP2301023EN
- Pep Verification Date
- 2025-04-20
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2018; Spain, SP
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 59
- Width Nominal
- 72 mm
- [Ue] Rated Operational Voltage
- 380...415 V AC 50 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVEN/IEC 61008-1
- Rated Conditional Short-circuit Current
- Inc 10 kA
- Earth-leakage Protection Time Delay
- instantaneous
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]
- 0.3319
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 58.165
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 626.39
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 86.483
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 1766.4
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1481.9
- Customs Code
- 8536200040
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Poles Description4P
Carbon Footprint Of The Distribution Phase [A4]0.0564405551138076, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0252832558440153
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]58 kg CO2 eq., 58.165
Local Publishable Date2026-07-13
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Control Typetoggle
Device Short NameID
Electromagnetic Compatibility8/20 µs impulse withstand, 250 A EN/IEC 61008-1
Local SignallingON, OFF, fault trip
Mechanical Durability20000 cycles
Mounting SupportDIN rail
Network TypeAC
Number Of Poles4P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeresidual current circuit breaker (RCCB)
Range Of ProductMulti9
ReturnabilityNo
Sustainable PackagingYes
Total Lifecycle Carbon Footprint63 kg CO2 eq.
Tropicalisation2 IEC 60068-1
Eleakage Prot Classtype AC
Earth Leakage Sensitivity 1300 mA
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits and people and premises at risk of fire or explosion against insulation defects in circuit with assigned voltage 400V and rated current 40A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 4& 10- Sensitivity 300mA& 10- Type of differential protection AC
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh141.912
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal81 mm
Certificate AgencyCE
[Ui] Rated Insulation Voltage440 V AC 50 Hz EN/IEC 61008-1
Earth-leakage Sensitivity300 mA
Earth-leakage Protection Classtype AC
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)347.000 g
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]58.087
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1481.9
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]1.1573
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]8.3687
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]284.56
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]284.56
Tsca RegulationDoes not contain Section 6H Chemical
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-60 °C, -40-60 °C
- Take Back
- No
- Halogene Performance
- Product contains halogen above thresholds
- China Rohs Regulation
- X
- Mercury Free
- Yes
- 9 Mm Pitches
- 8
- Environmental Disclosure
- ENVPEP2301023EN
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2301023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Reach RegulationFree of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint63.410969861965
Ambient Air Temperature For Operation-5-40 °C-5-40 °C
Eu Rohs DirectiveCompliant
Ip Degree Of ProtectionIP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % 55-55 °C
Pep Verification Date2025-04-20
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- residual current circuit breaker (RCCB)
Range Of ProductMulti9
ETIM
- ETIM 8
- EC000003
ETIM 9EC000003
Surge Protection And Filtering Attributes
- Surge Current
- 250 A
