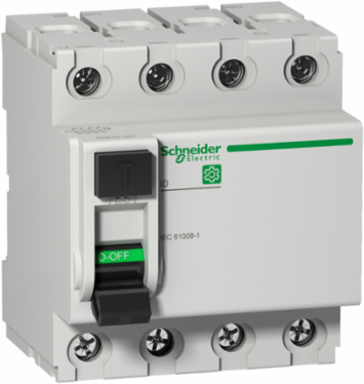

Schneider Electric M9R11440 Multi9 ID RCCB 4P 40A 30mA AC Type, IP20/IP40, DIN Rail Mountable
- MPN: M9R11440
- PPN: SCH-M9R11440
- UNSPSC: 39121633
CAD
$554.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Multi ID product is a residual current circuit breaker (RCCB). It is a 4P circuit breaker with 40A In rated current, 30mA earth leakage sensitivity and AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 400A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has an electrical endurance going up to 2000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 380VAC to 415VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 73mm. The weight is 0.45kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 60°C.
Features
- Protection of persons against electric shock by direct contact
- Compliant with UL 1053 and EN/IEC 61008-1 standards
- Green strip on the toggle ensuring physical contact opening, allowing safe downstream operations
- Presence of a test button to check the correct functioning of the device
- Fault indication by a red mechanical indicator on front face
- Ideal for operation in environments with a humid atmosphere and/or polluted by aggressive agents
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain |
|---|
| Depth | 73 mm |
|---|
Physical Attributes
| Color | Gray |
|---|
| Wire Stripping Length | 15 mm for top or bottom connection |
|---|
Complementary Attributes
| Line Rated Current | 40 A |
|---|---|
| Ue Rated Operational Voltage | 380...415 V AC 50 Hz |
| Uimp Rated Impulse Withstand Voltage | 6 kVEN/IEC 61008-1 |
| Rated Breaking And Making Capacity | Idm 400 A EN/IEC 61008-1 |
|---|---|
| Ui Rated Insulation Voltage | 440 V AC 50 Hz EN/IEC 61008-1 |
| Rated Conditional Short Circuit Current | Inc 10 kA |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Connection Pitch | 18 mm between phase and neutral, 18 mm between phases |
| Connections Terminals | tunnel type terminal (top or bottom)1-35 mm² - rigid, tunnel type terminal (top or bottom)1-25 mm² - flexibletunnel type terminal (top or bottom): 3 cable(s) 16-16 mm² - rigid, tunnel type terminal (top or bottom): 3 cable(s) 10-10 mm² - flexible, tunnel type terminal (top or bottom)1-25 mm² - flexible with ferrule |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.995199755014716, 1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 4 kg CO2 eq., 3.8844737047135 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Use Carbon Footprint | 58.165 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 0844 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Contact Position Indicator | yes |
| Device Application | distribution |
| Electrical Durability | 2000 cycles |
| Energy Efficiency Optimized | False |
| Locking Options Description | padlocking device |
| Mounting Mode | clip-on |
| Network Frequency | 50 Hz |
| Neutral Position | left |
| Power Losses Per Pole | 3.6 W |
| Product Name | Multi9 ID |
| Range | Multi9 |
| Residual Current Tripping Technology | voltage independent |
| Software Version | v5.9.4 |
| Tightening Torque | 3.5-3.5 N.m top or bottom |
| Total Power Losses | 10.8 W |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Rated Current 3 | 40 A |
| Database Version | 2022-01 |
| Height Nominal | 81 mm |
| Certificate Agency | CE |
| Customs Code | 8536200040 |
| Oecd Pfas Regulation | Item contains PFAS Chemicals |
| Earth Leakage Protection Class | type AC |
| Halogen Free Status | Product contains halogen above thresholds |
| Functional Unit Description | Protect during 20 years the installation against overloads and short-circuits and people and premises at risk of fire or explosion against insulation defects in circuit with assigned voltage 400V and rated current 40A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 4& 10- Sensitivity 300mA& 10- Type of differential protection AC |
| Functional Unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 141.912 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Poles Description | 4P |
| Carbon Footprint Of The Distribution Phase A4 | 0.0533304331592528, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0 kg CO2 eq., 0.023890037635503 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 58 kg CO2 eq., 58.165 |
| Local Publishable Date | 2026-07-13 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Control Type | toggle |
| Device Short Name | ID |
| Electromagnetic Compatibility | 8/20 µs impulse withstand, 250 A EN/IEC 61008-1 |
| Local Signalling | ON, OFF, fault trip |
| Mechanical Durability | 20000 cycles |
| Mounting Support | DIN rail |
| Network Type | AC |
| Number Of Poles | 4P |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | residual current circuit breaker (RCCB) |
| Range Of Product | Multi9 |
| Returnability | No |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 63 kg CO2 eq. |
| Tropicalisation | 2 IEC 60068-1 |
| Eleakage Prot Class | type AC |
| Earth Leakage Sensitivity 1 | 30 mA |
| Data Source | extrapolated product |
| Width Nominal | 72 mm |
| Nbr. Of Units In Pkg. | 1 |
| Tsca Regulation | Does not contain Section 6H Chemical |
| Earth Leakage Sensitivity | 30 mA |
| Earth Leakage Protection Time Delay | instantaneous |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 59 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-60 °C, -40-60 °C |
|---|---|
| Take Back | No |
| Halogene Performance | Product contains halogen above thresholds |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| 9 Mm Pitches | 8 |
| Environmental Disclosure | ENVPEP2301023EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2301023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Reach Regulation | Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 63.1218939305229 |
| Ambient Air Temperature For Operation | -5-40 °C-5-40 °C |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 95-95 % 55-55 °C |
| Pep Verification Date | 2025-04-20 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | residual current circuit breaker (RCCB) |
|---|
| Range Of Product | Multi9 |
|---|
ETIM
| ETIM 8 | EC000003 |
|---|---|
| ETIM 10 | EC000003 |
| ETIM 9 | EC000003 |
|---|
Surge Protection And Filtering Attributes
| Surge Current | 250 A |
|---|
