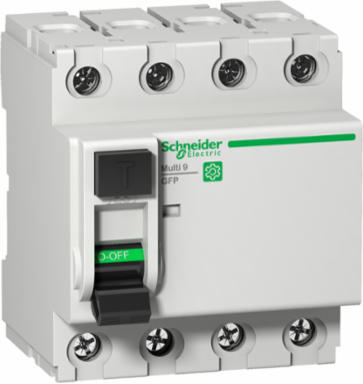

Multi9 GFP 4P RCCB, 25A, 30mA, IP20, DIN Rail Mountable
Schneider Electric

Schneider Electric M9R81425 Multi9 GFP 4P RCCB, 25A, 30mA, IP20, DIN Rail Mountable

  • MPN: M9R81425
  • PPN: SCH-M9R81425
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $921.85

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Multi GFP product is a residual current circuit breaker (RCCB). It is a 4P circuit breaker with 25A In rated current, 26mA earth leakage sensitivity and A-SI type protection class. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 60mm. The weight is 0.45kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Spain, France, United States
    Depth60 mm

    Physical Attributes

    Color
    Gray RAL 7035)
    Wire Stripping Length14 mm for top or bottom connection

    Complementary Attributes

    Line Rated Current
    25 A 40 °C EN/IEC 61008-1
    Rated Breaking And Making CapacityIdm 1500 A EN/IEC 61008-1

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Poles Description
    4P
    Connections - Terminals
    tunnel type terminals (top or bottom)1-25 mm² (18 AWG...3 AWG) - flexibletunnel type terminals (top or bottom)1-35 mm² (18 AWG...2 AWG) - rigid, tunnel type terminals (top or bottom)1-25 mm² (18 AWG...3 AWG) - flexible with ferrule
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    1.14132993590992, 1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    4 kg CO2 eq., 4.45485049820867
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    PPIBS
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    3
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Market Segmentation Id
    COMMERCIAL
    Product Kit Identifier
    N
    Contact Position Indicator
    yes
    Device Application
    distribution
    Electromagnetic Compatibility
    8/20 µs impulse withstand, 3000 A EN/IEC 61008-1
    Local Signalling
    ON, OFF, fault trip
    Mechanical Durability
    20000 cycles
    Mounting Support
    DIN rail
    Network Type
    AC
    Number Of Poles
    4P
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    residual current circuit breaker (RCCB)
    Range Of Product
    Multi9
    Returnability
    Yes
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    28 kg CO2 eq.
    Tropicalisation
    2 IEC 60068-1
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Earth Leakage Sensitivity 1
    30 mA
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    Protect during 20 years the installation against overloads and short-circuits and people and premises at risk of fire or explosion against insulation defects in circuit with assigned voltage 400V and rated current 40A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 4& 10- Sensitivity 300mA& 10- Type of differential protection AC
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Low voltage; 2018; Spain, SP
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %
    59
    Width Nominal
    72 mm
    [Ui] Rated Insulation Voltage
    440 V AC 50/60 Hz
    Earth-leakage Sensitivity
    26 mA UL 105330 mA EN/IEC 61008-1
    Earth-leakage Protection Class
    type A-SI (Super Immunised)
    Halogen-free Status
    Product contains halogen above thresholds
    Package Weight(Lbs)
    376.000 g
    Warranty (In Months)
    18
    Tsca Regulation
    Does not contain Section 6H Chemical
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Certificate AgencyIEC, UL
    Carbon Footprint Of The Distribution Phase [A4]0.0611612086447897, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0273979319086661
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]23 kg CO2 eq., 22.6197222222222
    Local Publishable Date2026-07-13
    Stocking FlagN
    Device TypeLV equipment - Low voltage circuit breaker
    TraceabilityNo
    Average Life Duration15 year(s)
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date0627
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationCommercial
    Connection Pitch18 mm between phases
    Control Typetoggle
    Device Short NameGFP
    Energy Efficiency OptimizedFalse
    Locking Options Descriptionpadlocking in OFF position
    Mounting Modeclip-on
    Network Frequency50/60 Hz
    Neutral Positionleft
    Power Losses Per Pole1.4 W
    Product NameMulti9 GFP
    RangeMulti9
    Residual Current Tripping Technologyvoltage independent
    Software Versionv5.9.4
    Tightening Torque3.5-3.5 N.m top or bottom
    Total Power Losses4.2 W
    Utilisation CategoryAC-23A EN/IEC 61008-1
    Rated Current 325 A
    Pep CodeENVPEP2301023EN
    Pep Verification Date2025-04-20
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal81 mm
    [Ue] Rated Operational Voltage480Y/277 V AC 60 Hz415 V AC 50 Hz
    [Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 61008-1
    Rated Conditional Short-circuit CurrentInc 10 kA 100 A gG
    Earth-leakage Protection Time Delayinstantaneous
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536200020

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-70 °C, -40-70 °C
    Halogene Performance
    Product contains halogen above thresholds
    China Rohs Regulation
    X
    Carbon Footprint
    28.3044617968942
    Ambient Air Temperature For Operation
    -25-60 °C-25-60 °C
    Eu Rohs Directive
    Compliant By Exemption
    Ip Degree Of Protection
    IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
    Packaging Without Single Use Plastic
    Yes
    Relative Humidity
    95-95 % 55-55 °C
    Pep Verification Date
    2025-04-20
    Psr Version
    PSR-0005-ed2-2016 03 29
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    9 Mm Pitches8
    Environmental DisclosureENVPEP2301023EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep CodeENVPEP2301023EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review

    General Attributes

    Product Or Component Type
    residual current circuit breaker (RCCB)
    Range Of ProductMulti9

    ETIM

    ETIM 8
    EC000003
    ETIM 9EC000003
