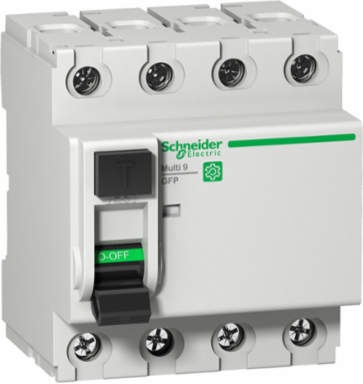

Schneider Electric M9R12425 Multi9 RCCB 4P 25A A-SI 86mA with IP20/IP40 Protection

MPN: M9R12425
PPN: SCH-M9R12425
UNSPSC: 39121633

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$979.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Multi GFP product is a residual current circuit breaker (RCCB). It is a 4P circuit breaker with 25A In rated current, 86mA earth leakage sensitivity and A-SI type protection class. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 60mm. The weight is 0.45kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.

Features

Protection of persons against electric shock by indirect contact
Protection of installations against insulation faults
Compliant with UL 1053 and EN/IEC 61008-1 standards
Green strip on the toggle ensuring physical contact opening, allowing safe downstream operations
Presence of a test button to check the correct functioning of the device
Fault indication by a red mechanical indicator on front face
Ideal for operation in environments with a humid atmosphere and/or polluted by aggressive agents

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Depth	60 mm

Physical Attributes

Color	Gray

Wire Stripping Length	14 mm for top or bottom connection

Complementary Attributes

Line Rated Current	25 A 40 °C EN/IEC 61008-1
Ue Rated Operational Voltage	415 V AC 50 Hz480Y/277 V AC 60 Hz
Uimp Rated Impulse Withstand Voltage	6 kVEN/IEC 61008-1

Rated Breaking And Making Capacity	Idm 1500 A EN/IEC 61008-1
Ui Rated Insulation Voltage	440 V AC 50/60 Hz
Rated Conditional Short Circuit Current	Inc 10 kA 100 A gG

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Poles Description	4P
Certificate Agency	IEC, UL
Local Publishable Date	2026-07-13
Device Type	LV equipment - Low voltage circuit breaker
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	0627
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Commercial
Connection Pitch	18 mm between phases
Control Type	toggle
Device Short Name	GFP
Energy Efficiency Optimized	False
Locking Options Description	padlocking in OFF position
Mounting Mode	clip-on
Network Frequency	50/60 Hz
Neutral Position	left
Power Losses Per Pole	1.4 W
Product Name	Multi9 GFP
Range	Multi9
Residual Current Tripping Technology	voltage independent
Sustainable Packaging	Yes
Total Power Losses	4.2 W
Utilisation Category	AC-23A EN/IEC 61008-1
Rated Current 3	25 A
Height Nominal	81 mm
Nbr. Of Units In Pkg.	1
Tsca Regulation	Does not contain Section 6H Chemical
Earth Leakage Sensitivity	86 mA UL 1053100 mA EN/IEC 61008-1
Earth Leakage Protection Time Delay	instantaneous
Warranty In Months	18

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Connections Terminals	tunnel type terminals (top or bottom)1-25 mm² (18 AWG...3 AWG) - flexibletunnel type terminals (top or bottom)1-35 mm² (18 AWG...2 AWG) - rigid, tunnel type terminals (top or bottom)1-25 mm² (18 AWG...3 AWG) - flexible with ferrule
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	3
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Contact Position Indicator	yes
Device Application	distribution
Electromagnetic Compatibility	8/20 µs impulse withstand, 3000 A EN/IEC 61008-1
Local Signalling	ON, OFF, fault trip
Mechanical Durability	20000 cycles
Mounting Support	DIN rail
Network Type	AC
Number Of Poles	4P
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	residual current circuit breaker (RCCB)
Range Of Product	Multi9
Returnability	Yes
Tightening Torque	3.5-3.5 N.m top or bottom
Tropicalisation	2 IEC 60068-1
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Earth Leakage Sensitivity 1	100 mA
Width Nominal	72 mm
Customs Code	8536200040
Oecd Pfas Regulation	Item contains PFAS Chemicals
Earth Leakage Protection Class	type A-SI (Super Immunised)
Halogen Free Status	Product contains halogen above thresholds

Environment Attributes Main

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Halogene Performance	Product contains halogen above thresholds
China Rohs Regulation	X
9 Mm Pitches	8
Environmental Disclosure	ENVPEP2301023EN
Halogen Content Performance	Product contains halogen above thresholds
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2301023EN

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	-25-60 °C-25-60 °C
Eu Rohs Directive	Compliant By Exemption
Ip Degree Of Protection	IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Relative Humidity	95-95 % 55-55 °C
