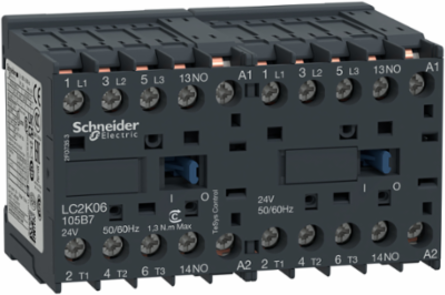

Schneider Electric LC2K06105B7 TeSys K Reversing Contactor, 3P, 6A, 24V AC Coil, 90mm Width
- MPN: LC2K06105B7
- PPN: SCH-LC2K06105B7
CAD
$189.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides 24V 50/60Hz AC coils, 2NO built-in auxiliary contacts, connection by solder pins for printed circuit board. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With mechanical interlock (without electrical interlocking), this model has no pre-wired reversing power connections. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 57 mm
Complementary Attributes
- Irms Rated Making Capacity
- 110 A AC for power circuit conforming to NF C 63-110, 110 A AC for power circuit conforming to IEC 60947, 110 A AC for signalling circuit conforming to IEC 60947
- Control Circuit Type
- AC 50/60 Hz
- Maximum Motor Phase Current
- 6 A
- Minimum Switching Current
- 5 mA for signalling circuit
Rated Breaking Capacity110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 6094780 A at 500 V conforming to IEC 60947, 110 A at 220...230 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 6094770 A at 660...690 V conforming to IEC 60947
Control Circuit Voltage Limitsoperational: 0.8...1.15 Uc (at <50 °C)drop-out: 0.2...0.75 Uc (at <50 °C)
Maximum Operating Rate3600 cyc/h
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 25 A gG at <= 440 V for power circuit, 25 A aM for power circuit, 10 A gG for signalling circuit conforming to IEC 60947, 10 A gG for signalling circuit conforming to VDE 0660
- Flame Retardance
- V1 conforming to UL 94requirement 2 conforming to NF F 16-101, requirement 2 conforming to NF F 16-102
- Mechanical Robustness
- shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27, shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27, shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
- Mounting Support
- rail, plate
- Protective Treatment
- TC IEC 60068, TC DIN 50016
- Utilisation Category
- AC-4, AC-3, AC-3e
- [Icw] Rated Short-time Withstand Current
- 90 A 50 °C - 1 s for power circuit85 A 50 °C - 5 s for power circuit80 A 50 °C - 10 s for power circuit60 A 50 °C - 30 s for power circuit45 A 50 °C - 1 min for power circuit40 A 50 °C - 3 min for power circuit, 80 A - 1 s for signalling circuit, 90 A - 500 ms for signalling circuit110 A - 100 ms for signalling circuit20 A 50 °C - >= 15 min for power circuit
- [Uc] Control Circuit Voltage
- 24 V, 24 V AC 50/60 Hz
- Carbon Footprint Of The Distribution Phase [A4]
- 0.7927254130506376, 0.8 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.05449658002945961
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 149 kg CO2 eq., 148.7125900157399
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1503003
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2448
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- LC2K
- Device Application
- control
- Heat Dissipation
- 1.3-1.3 W
- Interlocking Type
- mechanical
- Non Overlap Distance
- 0.5 mm
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- reversing contactor
- Range Of Product
- TeSys K
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Inf Motor Phase Current
- 6 A
- Pep Code
- ENVPEP1503003EN
- Pep Verification Date
- 2026-03-23
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 63
- Width Nominal
- 90 mm
- [Ue] Rated Operational Voltage
- power circuit 690 V AC 50/60 Hzsignalling circuit <= 690 V AC 50/60 Hz
- Connections - Terminals
- solder pins 0.035 mm)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Electrical Durability1.3 Mcycles 6 A AC-3 <= 440 V, 1.3 Mcycles 6 A AC-3e <= 440 V, 0.05 Mcycles 36 A AC-4 <= 440 V
Insulation Resistance> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw1.5 kW 220...230 V AC 50/60 Hz2.2 kW 380...415 V AC 50/60 Hz3 kW 440 V AC 50/60 Hz, 3 kW 480 V AC 50/60 Hz, 3 kW 500...600 V AC 50/60 Hz, 3 kW 660...690 V AC 50/60 Hz
Operating Time10...20 ms coil energisation and NO closing, 10...20 ms coil de-energisation and NO opening
Signalling Circuit Frequency<= 400 Hz, <= 400 Hz
Certificate AgencyCB Scheme, CCC, UL, CSA, EAC, CE, UKCA
[Ie] Rated Operational Current6 A at <= 440 V AC AC-3 for power circuit, 6 A at <= 440 V AC AC-3e for power circuit
[Ui] Rated Insulation Voltagesignalling circuit 600 V UL 508signalling circuit 600 V CSA C22.2 No 14power circuit 600 V UL 508power circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-4-1, signalling circuit 690 V IEC 60947-5-1, power circuit 600 V CSA C22.2 No 14
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5756690395364009, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 2.0539665651372356
Local Data StatusPublishable
Return IndicatorN
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Impedance3 mOhm - Ith 20 A 50 Hz for power circuit
Contactor Applicationmotor control
Device Short NameLC2K
Inrush Power In Va30-30 VA (at 20 °C)
Mechanical Durability5 Mcycles
Number Of Poles3P
Pole Contact Composition3 NO
Product NameTeSys K
RangeTeSys
ReturnabilityNo
Software Versionv6.2.4
Total Lifecycle Carbon Footprint152 kg CO2 eq.
Control Circuit Voltage24 V
Auxiliary Contact Comp1 NO
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh367.92
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal58 mm
[Ith] Conventional Free Air Thermal Current20 A (at 50 °C) for power circuit10 A (at 50 °C) for signalling circuit
[Uimp] Rated Impulse Withstand Voltage8 kV
Hold-in Power Consumption In Va4.5-4.5 VA (at 20 °C)
Package Weight(Lbs)400.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C, -25-50 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 152.18944761349363
- Environmental Disclosure
- ENVPEP1503003EN
- Ip Degree Of Protection
- IP20 VDE 0106
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1503003EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-50-80 °C, -50-80 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI1503003
Eu Rohs DirectiveCompliant
Operating Altitude6561.68 ft (2000 m) without derating
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2026-03-23
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- reversing contactor
Range Of ProductTeSys K
ETIM
- ETIM 8
- EC000010
ETIM 9EC000010
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- preassembled with reversing power busbar
