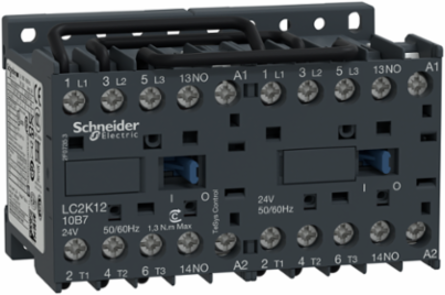

Schneider Electric LC2K1210B7 TeSys K Reversing Contactor 3P 12A 24V AC Coil, 90mm Width
Schneider Electric LC2K1210B7 TeSys K Reversing Contactor 3P 12A 24V AC Coil, 90mm Width
- MPN: LC2K1210B7
- PPN: SCH-LC2K1210B7
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$215.80/ EA
Description
TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides 24V 50/60Hz AC coils, 2NO built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Mechanical Robustness
- shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor opened2 Gn, 5...300 Hz IEC 60068-2-6
- Height
- 58 mm
- Flame Retardance
- V1 UL 94 || requirement 2 NF F 16-101 || requirement 2 NF F 16-102
- Protective Treatment
- TC IEC 60068 || TC DIN 50016
- Operating Altitude
- 2000 m without derating
- Depth
- 57 mm
Ambient Air Temperature For Operation-25-50 °C
Net Weight0.39 kg
Ambient Air Temperature For Storage-50-80 °C
Ip Degree Of ProtectionIP20 VDE 0106
Width90 mm
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1503003EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1503003EN
Complementary
- Minimum Switching Current
- 5 mA for signalling circuit
- Non Overlap Distance
- 0.5 mm
- Inrush Power In Va
- 30-30 VA (at 20 °C)
- Signalling Circuit Frequency
- <= 400 Hz
- Hold-In Power Consumption In Va
- 4.5-4.5 VA (at 20 °C)
Control Circuit Voltage Limitsoperational: 0.8...1.15 Uc (at <50 °C) || drop-out: 0.2...0.75 Uc (at <50 °C)
Insulation Resistance> 10 MOhm for signalling circuit
Minimum Switching Voltage17 V for signalling circuit
Auxiliary Contacts Typeinstantaneous 1 NO
Heat Dissipation1.3-1.3 W
Specifications
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- [Uc] Control Circuit Voltage
- 24 V AC 50/60 Hz
- Average Impedance
- 3 mOhm - Ith 20 A 50 Hz for power circuit
- [Ith] Conventional Free Air Thermal Current
- 20 A (at 60 °C) for power circuit || 10 A (at 50 °C) for signalling circuit
- Mounting Support
- plate || rail
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Rated Breaking Capacity
- 110 A at 440 V conforming to IEC 60947 || 80 A at 500 V conforming to IEC 60947 || 70 A at 660...690 V conforming to IEC 60947
- Irms Rated Making Capacity
- 144 A AC for power circuit conforming to IEC 60947 || 110 A AC for signalling circuit conforming to IEC 60947
- Associated Fuse Rating
- 25 A gG at <= 440 V for power circuit || 25 A aM for power circuit || 10 A gG for signalling circuit conforming to IEC 60947 || 10 A gG for signalling circuit conforming to VDE 0660
- Connections - Terminals
- screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-2.5 mm²flexible with cable end || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 2 0.34-1.5 mm²flexible with cable end
- Pole Contact Composition
- 3 NO
- Utilisation Category
- AC-3 || AC-3e || AC-4 || AC-1
- Maximum Operating Rate
- 3600 cyc/h
- Mechanical Durability
- 5 Mcycles
- Operating Time
- 10...20 ms coil energisation and NO closing || 10...20 ms coil de-energisation and NO opening
- Overvoltage Category
- III
- [Ui] Rated Insulation Voltage
- power circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-4-1 || signalling circuit 690 V IEC 60947-5-1 || signalling circuit 600 V UL 508 || power circuit 600 V CSA C22.2 No 14 || signalling circuit 600 V CSA C22.2 No 14
- Device Short Name
- LC2K
Interlocking Typemechanical
[Ue] Rated Operational Voltagepower circuit 690 V AC 50/60 Hz || signalling circuit <= 690 V AC 50/60 Hz
Auxiliary Contact Composition1 NO
StandardsEN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1
Control Circuit TypeAC 50/60 Hz
Contactor Applicationresistive load || motor control
Product Or Component Typereversing contactor
Product NameTeSys K
[Uimp] Rated Impulse Withstand Voltage8 kV
RangeTeSys
Device Presentationpreassembled with reversing power busbar
[Ie] Rated Operational Current12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 12 A (at <60 °C) at <= 440 V AC AC-3e for power circuit || 20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit
Electrical Durability1.3 Mcycles 12 A AC-3 <= 440 V || 1.3 Mcycles 12 A AC-3e <= 440 V || 0.3 Mcycles 20 A AC-1 <= 690 V || 0.02 Mcycles 72 A AC-4 <= 440 V
Poles Description3P
Tightening Torque0.8-1.3 N.m screw clamp terminals Philips No 2 || 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm
Motor Power Kw3 kW 220...230 V AC 50/60 Hz || 5.5 kW 380...415 V AC 50/60 Hz || 5.5 kW 440 V AC 50/60 Hz || 4 kW 690 V AC 50/60 Hz
Device Applicationcontrol
[Icw] Rated Short-Time Withstand Current115 A 50 °C - 1 s for power circuit || 105 A 50 °C - 5 s for power circuit || 100 A 50 °C - 10 s for power circuit || 75 A 50 °C - 30 s for power circuit || 55 A 50 °C - 1 min for power circuit || 50 A 50 °C - 3 min for power circuit || 25 A 50 °C - >= 15 min for power circuit || 80 A - 1 s for signalling circuit || 90 A - 500 ms for signalling circuit || 110 A - 100 ms for signalling circuit
