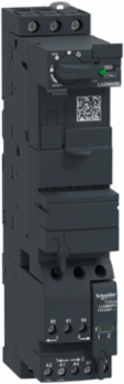

Schneider Electric LU2BB0BL TeSys Ultra Reversing Power Base, 3P, 32A, 690V AC, 24V DC

MPN: LU2BB0BL
PPN: SCH-LU2BB0BL

$1342.11

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The TeSys Ultra Reversing Power Base by Schneider Electric is designed for robust automation and control applications, integrating seamlessly into advanced electrical systems. With a capacity of 32A and operating at 690V AC, this 3-phase device ensures reliable and efficient performance, making it an excellent choice for demanding industrial environments. Additionally, its compatibility with a 24V DC control circuit enhances versatility, allowing for tailored solutions in a variety of starter and contactor configurations. This power base is not only engineered for precision but also offers the durability needed for continuous operation, positioning it as an essential component for modern control systems.

Documentation & Downloads

Specifications

Key Specifications

[Ics] Rated Service Breaking Capacity	50 kA 230 V \|\| 50 kA 440 V \|\| 10 kA 500 V \|\| 4 kA 690 V
Auxiliary Contact Composition	1 NO + 1 NC
Product Or Component Type	reversing power base
Product Name	TeSys Ultra
Utilisation Category	AC-43 \|\| AC-44 \|\| AC-41
Suitability For Isolation	yes
Auxiliary Contacts Type	linked contacts 1 NO + 1 NC) IEC 60947-4-1 \|\| mirror contact 1 NC) IEC 60947-1
Control Circuit Voltage Limits	14.5 V DC drop-out \|\| 20...27 V DC in operation
Device Application	motor control \|\| motor protection

[Ue] Rated Operational Voltage	690 V AC power circuit
[Uc] Control Circuit Voltage	24 V DC
[Ith] Conventional Free Air Thermal Current	32 A
Range	TeSys
[Ie] Rated Operational Current	28.5 A <= 440 V \|\| 23 A 500 V \|\| 21 A 690 V
Product Compatibility	control unit LUC.X6BL \|\| control unit LUC.1XBL \|\| control unit LUC.05BL \|\| control unit LUC.12BL \|\| control unit LUC.18BL \|\| control unit LUC.32BL
Poles Description	3P
Network Frequency	40...60 Hz
Device Short Name	LU2B

Complementary

Product Certifications	CE \|\| UL \|\| CSA \|\| CCC \|\| EAC \|\| ASEFA \|\| ATEX \|\| Marine
Safety Reliability Level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 \|\| B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Connections - Terminals	power circuit screw clamp terminals 1 1-10 mm² rigid \|\| power circuit screw clamp terminals 1 1-6 mm² flexible with cable end \|\| power circuit screw clamp terminals 1 2.5-10 mm² flexible without cable end \|\| power circuit screw clamp terminals 2 1-6 mm² flexible with cable end \|\| power circuit screw clamp terminals 2 1-6 mm² rigid \|\| power circuit screw clamp terminals 2 1.5-6 mm² flexible without cable end \|\| control circuit without connection
Fixing Mode	clipped (DIN rail) \|\| screw-fixed (plate)
Inrush Restraint Duration	15 ms DC
[Ui] Rated Insulation Voltage	690 V IEC 60947-6-2 3) \|\| 600 V UL 60947-4-1 \|\| 600 V CSA C22.2 No 60947-4-1
Mechanical Durability	15 Mcycles
Operating Time	150 ms with change of direction power circuit \|\| 75 ms without change of direction power circuit \|\| 35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit \|\| 75 ms closing with LUCM control circuit \|\| 70 ms closing with LUCA, LUCB, LUCC, LUCD control circuit
Tightening Torque	power circuit 1.9-2.5 N.m flat 6 mm \|\| power circuit 1.9-2.5 N.m Philips No 2 6 mm \|\| power circuit 1.9-2.5 N.m pozidriv No 2 6 mm
Depth	126 mm

Height	224 mm
Maximum Operating Rate	3600 cyc/h
Net Weight	1.25 kg
[Uimp] Rated Impulse Withstand Voltage	6 kVIEC 60947-6-2
Standards	EN 60947-6-2 \|\| IEC 60947-6-2 \|\| UL 60947-4-1, with phase barrier \|\| CSA C22.2 No 60947-4-1, with phase barrier
Typical Current Consumption	120 mA 24 V DC I maximum while closing \|\| 120 mA 24 V DC I rms sealed
Compatibility Code	LU2B
Width	45 mm
Safe Separation Of Circuit	400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N \|\| 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N
Heat Dissipation	3-3 W control circuit with LUCA, LUCB, LUCC, LUCD \|\| 1.8-1.8 W control circuit with LUCM

Environment

Ambient Air Temperature For Operation	-25-60 °C with LUCM \|\| -25-70 °C with LUCA, LUCB, LUCC, LUCD
Shock Resistance	10 gn power poles open IEC 60068-2-27 \|\| 15 gn power poles closed IEC 60068-2-27
Immunity To Voltage Dips	70 % / 500 ms IEC 61000-4-11
Ambient Air Temperature For Storage	-40-85 °C
Resistance To Electrostatic Discharge	8 kV 3 in open air IEC 61000-4-2 \|\| 8 kV 4 on contact IEC 61000-4-2
Fire Resistance	960 °C parts supporting live components IEC 60695-2-12 \|\| 650 °C IEC 60695-2-12
Resistance To Fast Transients	2 kV 3 serial link IEC 61000-4-4 \|\| 4 kV 4 all circuits except for serial link IEC 61000-4-4

Resistance To Radiated Fields	10 V/m 3 IEC 61000-4-3
Immunity To Microbreaks	3 ms control circuit
Vibration Resistance	2 gn 5-300 Hz) power poles open IEC 60068-2-27 \|\| 4 gn 5-300 Hz) power poles closed IEC 60068-2-27
Protective Treatment	TH IEC 60068
Ip Degree Of Protection	IP20 IEC 60947-1 front panel and wired terminals) \|\| IP20 IEC 60947-1 other faces) \|\| IP40 IEC 60947-1 front panel outside connection zone)
Immunity To Radioelectric Fields	10 V IEC 61000-4-6
Operating Altitude	2000 m

Offer Sustainability

Rohs Exemption Information	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information

Mercury Free	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs Directive	Compliant with Exemptions
