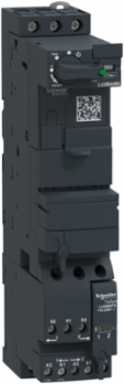

Schneider Electric LU2BA0BL TeSys Ultra Reversing Power Base 3P, 12A/690V, 24VDC Coil
- MPN: LU2BA0BL
- PPN: SCH-LU2BA0BL
CAD
$958.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric offers the TeSys Ultra Reversing Power Base, a robust and efficient solution designed for industrial automation. This 3-phase contactor operates smoothly with a current rating of 12A and can handle voltages up to 690V, making it suitable for a wide range of applications. Equipped with a 24VDC coil, it ensures reliable control and reversing capabilities in motor applications, facilitating the seamless operation of equipment. Its streamlined design and performance-oriented features make it an essential component for enhancing the functionality of your control systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Depth126 mm
Complementary Attributes
- Control Circuit Voltage Limits
- 14.5 V DC drop-out20...27 V DC in operation
Maximum Operating Rate3600 cyc/h
Important Information Attributes
- Device Application
- motor control, motor protection
- Resistance To Fast Transients
- 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
- Tightening Torque
- power circuit: 1.9-2.5 N.m flat screwdriver 6 mm, power circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m pozidriv No 2 screwdriver 6 mm
- Utilisation Category
- AC-43, AC-44, AC-41
- [Ics] Rated Service Breaking Capacity
- 50 kA 230 V, 50 kA 440 V10 kA 500 V4 kA 690 V
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-6-2 3)600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.6843699101945505, 0.7 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.0893852969884094
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 10 kg CO2 eq., 10.242554388924361
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Device Short Name
- LU2B
- Fixing Mode
- clipped (DIN rail)screw-fixed (plate)
- Immunity To Microbreaks
- 3 ms control circuit
- Immunity To Voltage Dips
- 70 % / 500 ms IEC 61000-4-11
- Mechanical Durability
- 15 Mcycles
- Number Of Poles
- 3P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- reversing power base
- Range
- TeSys
- Resistance To Electrostatic Discharge
- 8 kV 3 in open air IEC 61000-4-28 kV 4 on contact IEC 61000-4-2
- Returnability
- No
- Shock Resistance
- 10 gn power poles open IEC 60068-2-2715 gn power poles closed IEC 60068-2-27
- Suitability For Isolation
- yes
- Total Lifecycle Carbon Footprint
- 23 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 153.3
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; France, FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; France, FR
- Height Nominal
- 224 mm
- [Ith] Conventional Free Air Thermal Current
- 12 A
- [Ue] Rated Operational Voltage
- 690 V AC power circuit
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 1.281 kg
- Warranty (In Months)
- 18
Fire Resistance960 °C parts supporting live components IEC 60695-2-12, 650 °C IEC 60695-2-12
Safe Separation Of Circuit400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N, 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N
Typical Current Consumption120 mA 24 V DC I maximum while closing, 120 mA 24 V DC I rms sealed
Certificate AgencyCE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
[Ie] Rated Operational Current12 A <= 440 V, 12 A 500 V9 A 690 V
Connections - Terminalspower circuit: screw clamp terminals 2 cable(s) 1-6 mm² rigidpower circuit: screw clamp terminals 1 cable(s) 1-10 mm² rigidpower circuit: screw clamp terminals 1 cable(s) 1-6 mm² flexible with cable endpower circuit: screw clamp terminals 1 cable(s) 2.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² flexible with cable end, power circuit: screw clamp terminals 2 cable(s) 1.5-6 mm² flexible without cable endcontrol circuit: without connection
Carbon Footprint Of The End-of-life Phase [C1 To C4]3.2391501435711954, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 8.698303583482293
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2407003EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2023
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Compatibility CodeLU2B
Energy Efficiency OptimizedFalse
Heat Dissipation2-2 W control circuit with LUCA, LUCB, LUCC, LUCD1.7-1.7 W control circuit with LUCM
Immunity To Radioelectric Fields10 V IEC 61000-4-6
Inrush Restraint Duration15 ms DC
Network Frequency40...60 Hz
Operating Time150 ms with change of direction power circuit75 ms without change of direction power circuit35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit75 ms closing with LUCM control circuit70 ms closing with LUCA, LUCB, LUCC, LUCD control circuit
Product NameTeSys Ultra
Protective TreatmentTH IEC 60068
Range Of ProductTeSys Ultra
Resistance To Radiated Fields10 V/m 3 IEC 61000-4-3
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Software Versionv6.1
Sustainable PackagingYes
Vibration Resistance2 gn 5-300 Hz) power poles open IEC 60068-2-274 gn 5-300 Hz) power poles closed IEC 60068-2-27
Pep CodeENVPEP2407003EN
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential In %58
Width Nominal45 mm
[Uc] Control Circuit Voltage24 V DC
[Uimp] Rated Impulse Withstand Voltage6 kVIEC 60947-6-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536490065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Product Compatibility
- control unit LUC.X6BL, control unit LUC.1XBL, control unit LUC.05BL, control unit LUC.12BL
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2407003EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2407003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-70 °C with LUCA, LUCB, LUCC, LUCD-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD
Ip Degree Of ProtectionIP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces)IP40 IEC 60947-1 front panel outside connection zone)
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint22.953763323160807
Environmental DisclosureENVPEP2407003EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- reversing power base
Range Of ProductTeSys Ultra
ETIM
- ETIM 8
- EC001037
ETIM 9EC001037
