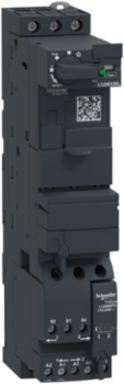

Schneider Electric LU2B32BL TeSys Ultra Reversing Power Base 3P, 32A, 690V, 24VDC Coil, 45mm Width
- MPN: LU2B32BL
- PPN: SCH-LU2B32BL
CAD
$1369.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys U standard reversing power base, 3 poles (3NO), rated 32A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0BL to be supplied with 24V DC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Depth126 mm
Complementary Attributes
- Control Circuit Voltage Limits
- 14.5 V DC drop-out20...27 V DC in operation
Maximum Operating Rate3600 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Application
- motor control, motor protection
- Resistance To Fast Transients
- 2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
- Tightening Torque
- control circuit: 0.8-1.2 N.m flat screwdriver 5 mm, control circuit: 0.8-1.2 N.m Philips no 1 screwdriver 5 mm, power circuit: 1.9-2.5 N.m flat screwdriver 6 mm, power circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m pozidriv No 2 screwdriver 6 mm
- Utilisation Category
- AC-43, AC-44, AC-41
- [Ics] Rated Service Breaking Capacity
- 50 kA 230 V, 50 kA 440 V10 kA 500 V4 kA 690 V
- Connections - Terminals
- control circuit: screw clamp terminals 2 cable(s) 0.75-1.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 0.75-1.5 mm² rigid, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² flexible with cable endpower circuit: screw clamp terminals 2 cable(s) 1-6 mm² flexible with cable end, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² rigid, control circuit: screw clamp terminals 1 cable(s) 0.34-1.5 mm² flexible with cable endcontrol circuit: screw clamp terminals 1 cable(s) 0.75-1.5 mm² flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 0.75-1.5 mm² rigid, control circuit: screw clamp terminals 2 cable(s) 0.34-1.5 mm² flexible with cable endpower circuit: screw clamp terminals 1 cable(s) 1-10 mm² rigid, power circuit: screw clamp terminals 1 cable(s) 2.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1.5-6 mm² flexible without cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 3.2897223550242978, 3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 9 kg CO2 eq., 8.834108479399267
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2407003EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2023
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- LU2B
- Energy Efficiency Optimized
- False
- Heat Dissipation
- 3-3 W control circuit with LUCA, LUCB, LUCC, LUCD1.8-1.8 W control circuit with LUCM
- Immunity To Radioelectric Fields
- 10 V IEC 61000-4-6
- Inrush Restraint Duration
- 15 ms DC
- Network Frequency
- 40...60 Hz
- Operating Time
- 150 ms with change of direction power circuit75 ms without change of direction power circuit35 ms opening with LUCA, LUCB, LUCC, LUCD, LUCM control circuit75 ms closing with LUCM control circuit70 ms closing with LUCA, LUCB, LUCC, LUCD control circuit
- Product Name
- TeSys Ultra
- Protective Treatment
- TH IEC 60068
- Range Of Product
- TeSys Ultra
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Software Version
- v6.1
- Sustainable Packaging
- Yes
- Vibration Resistance
- 2 gn 5-300 Hz) power poles open IEC 60068-2-274 gn 5-300 Hz) power poles closed IEC 60068-2-27
- Thermal Current
- 32 A
- Control Circuit Voltage 8 Control Circuit Type
- DC
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 229.95
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; France, FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; France, FR
- Height Nominal
- 224 mm
- [Ie] Rated Operational Current
- 32 A <= 440 V23 A 500 V21 A 690 V
- [Uc] Control Circuit Voltage
- 24 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVIEC 60947-6-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536504000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Fire Resistance960 °C parts supporting live components IEC 60695-2-12, 650 °C IEC 60695-2-12
Safe Separation Of Circuit400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N, 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N
Typical Current Consumption120 mA 24 V DC I maximum while closing, 120 mA 24 V DC I rms sealed
Certificate AgencyCE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
[Ui] Rated Insulation Voltage690 V IEC 60947-6-2 3)600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
Carbon Footprint Of The Distribution Phase [A4]0.6950548424380252, 0.7 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.09078085197651883
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]15 kg CO2 eq., 15.36383158338654
Local Publishable Date2026-06-27
Stocking FlagN
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameLU2B
Fixing Modeclipped (DIN rail)screw-fixed (plate)
Immunity To Microbreaks3 ms control circuit
Immunity To Voltage Dips70 % / 500 ms IEC 61000-4-11
Mechanical Durability15 Mcycles
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typereversing power base
RangeTeSys
Resistance To Electrostatic Discharge8 kV 3 in open air IEC 61000-4-28 kV 4 on contact IEC 61000-4-2
ReturnabilityYes
Shock Resistance10 gn power poles open IEC 60068-2-2715 gn power poles closed IEC 60068-2-27
Suitability For Isolationyes
Total Lifecycle Carbon Footprint28 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Control Circuit Voltage 8 Control Circuit Voltage24 V
Pep CodeENVPEP2407003EN
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential In %58
Width Nominal45 mm
[Ith] Conventional Free Air Thermal Current32 A
[Ue] Rated Operational Voltage690 V AC power circuit
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)1.301 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Product Compatibility
- control unit LUC.X6BL, control unit LUC.1XBL, control unit LUC.05BL, control unit LUC.12BL, control unit LUC.18BL, control unit LUC.32BL
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2407003EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2407003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-70 °C with LUCA, LUCB, LUCC, LUCD-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD
Ip Degree Of ProtectionIP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces)IP40 IEC 60947-1 front panel outside connection zone)
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint28.27349811222465
Environmental DisclosureENVPEP2407003EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- reversing power base
Range Of ProductTeSys Ultra
ETIM
- ETIM 8
- EC001037
ETIM 9EC001037
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
