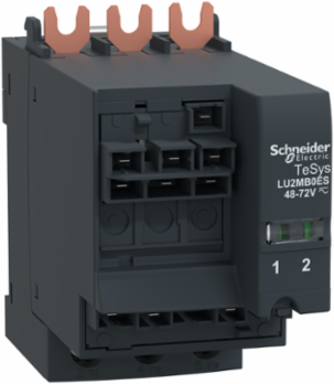

Schneider Electric LU2MB0ES TeSys Ultra Reverser Block, 32A, 690V AC, 48-72V DC, Vertical Mounting
- MPN: LU2MB0ES
- PPN: SCH-LU2MB0ES
CAD
$552.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys U reversing module for vertical mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 48V AC / 48-72V DC. To be used with an advanced power base LUB120 or LUB320 equipped with a Control Unit LUC*ES type. To be associated with an assembling connector LU9MR1C and a control terminal block LU9M1 to complete the vertical mounting. Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
| [Ie] Rated Operational Current | 32 A |
|---|---|
| [Uc] Control Circuit Voltage | 48 V AC 50/60 Hz || 48...72 V DC |
| Current Consumption | 2300 mA 48 V AC I maximum while closing || 2300 mA 48...72 V DC I maximum while closing |
| Device Short Name | LU2MB |
| Device Mounting | direct mounting |
|---|---|
| Product Or Component Type | reverser block |
| Device Application | motor control |
| Range | TeSys |
Complementary
| Product Certifications | CE || UL || CSA || CCC || EAC || ASEFA || ATEX || Marine |
|---|---|
| Height | 80 mm |
| Compatibility Code | LU2MB |
| Width | 45 mm |
| Depth | 105 mm |
| Network Frequency | 40...60 Hz |
| Fixing Mode | plug-in |
| Inrush Restraint Duration | 25 ms AC || 15 ms DC |
| [Ue] Rated Operational Voltage | 690 V AC power circuit |
|---|---|
| [Ui] Rated Insulation Voltage | 690 V IEC 60947-6-2 || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1 |
| Operating Time | 150 ms with change of direction || 75 ms without change of direction |
| Tightening Torque | control circuit 0.8-1.2 N.m flat 5 mm || control circuit 0.8-1.2 N.m Philips No 2 5 mm || power circuit 1.9-2.5 N.m flat 6 mm || power circuit 1.9-2.5 N.m Philips No 2 6 mm |
| Connections - Terminals | control circuit screw clamp terminals 1 0.34-1.5 mm² 3 mm) flexible with cable end || control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) flexible without cable end || control circuit screw clamp terminals 1 0.75-1.5 mm² 3 mm) rigid || control circuit screw clamp terminals 2 0.34-1.5 mm² 3 mm) flexible with cable end || control circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) flexible without cable end || control circuit screw clamp terminals 2 0.75-1.5 mm² 3 mm) rigid || power circuit screw clamp terminals 1 1-10 mm² 4 mm) rigid || power circuit screw clamp terminals 1 1-6 mm² 4 mm) flexible with cable end || power circuit screw clamp terminals 1 2.5-10 mm² 4 mm) flexible without cable end || power circuit screw clamp terminals 2 1-6 mm² 4 mm) flexible with cable end || power circuit screw clamp terminals 2 1-6 mm² 4 mm) rigid || power circuit screw clamp terminals 2 1.5-6 mm² 4 mm) flexible without cable end |
| Net Weight | 0.4 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kVIEC 60947-6-2 |
| Standards | EN 60947-6-2 || IEC 60947-6-2 || UL 60947-4-1, with phase barrier || CSA C22.2 No 60947-4-1, with phase barrier |
Environment
| Ambient Air Temperature For Operation | -25-60 °C with LUCM || -25-70 °C with LUCA, LUCB, LUCC, LUCD |
|---|---|
| Resistance To Radiated Fields | 10 V/m level 3 IEC 61000-4-3 |
| Ip Degree Of Protection | IP20 IEC 60947-1 front panel and wired terminals) || IP20 IEC 60947-1 other faces) || IP40 IEC 60947-1 front panel outside connection zone) |
| Operating Altitude | 2000 m |
| Shock Resistance | 10 gn power poles open IEC 60068-2-27 || 15 gn power poles closed IEC 60068-2-27 |
| Vibration Resistance | 2 gn 5-300 Hz) power poles open IEC 60068-2-27 || 4 gn 5-300 Hz) power poles closed IEC 60068-2-27 |
| Resistance To Fast Transients | 2 kV 3 serial link IEC 61000-4-4 || 4 kV 4 all circuits except for serial link IEC 61000-4-4 |
| Ambient Air Temperature For Storage | -40-85 °C |
|---|---|
| Protective Treatment | TH IEC 60068 |
| Resistance To Electrostatic Discharge | 8 kV level 3, in open air IEC 61000-4-2 || 8 kV level 4, on contact IEC 61000-4-2 |
| Non-Dissipating Shock Wave | 1 kV serial mode IEC 60947-6-2 || 2 kV common mode IEC 60947-6-2 |
| Fire Resistance | 960 °C parts supporting live components IEC 60695-2-12 || 650 °C IEC 60695-2-12 |
| Immunity To Radioelectric Fields | 10 V IEC 61000-4-6 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information |
|---|---|
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Rohs Exemption Information | Yes |
|---|---|
| Eu Rohs Directive | Compliant with Exemptions |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
