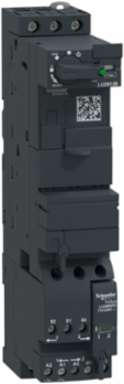

Schneider Electric LU2B12B TeSys Ultra Reversing Power Base, 3P, 12A, 690VAC, 24VAC Coil
- MPN: LU2B12B
- PPN: SCH-LU2B12B
CAD
$966.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys U standard reversing power base, 3 poles (3NO), rated 12A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 5.5kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0B to be supplied with 24V AC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Depth126 mm
Complementary Attributes
- Control Circuit Voltage Limits
- 14.5 V AC drop-out20...26.5 V AC in operation
Maximum Operating Rate3600 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Application
- motor control, motor protection
- Operating Time
- 150 ms with change of direction power circuit, 35 ms opening control circuit70 ms closing control circuit75 ms without change of direction power circuit
- Safe Separation Of Circuit
- 400 V SELV between the control and auxiliary circuits IEC 60947-1 appendix N, 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1 appendix N
- Utilisation Category
- AC-43, AC-44, AC-41
- [Ics] Rated Service Breaking Capacity
- 50 kA 230 V, 50 kA 440 V10 kA 500 V4 kA 690 V
- [Ui] Rated Insulation Voltage
- 690 V IEC 60947-6-2 3)600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.6875753898675929, 0.7 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.08980396348484222
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 17 kg CO2 eq., 16.85631808005838
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- LU2B
- Fixing Mode
- clipped (DIN rail)screw-fixed (plate)
- Immunity To Microbreaks
- 3 ms control circuit
- Immunity To Voltage Dips
- 70 % / 500 ms IEC 61000-4-11
- Mechanical Durability
- 15 Mcycles
- Number Of Poles
- 3P
- Product Name
- TeSys Ultra
- Protective Treatment
- TH IEC 60068
- Range Of Product
- TeSys Ultra
- Resistance To Radiated Fields
- 10 V/m 3 IEC 61000-4-3
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Software Version
- v6.1
- Sustainable Packaging
- Yes
- Typical Current Consumption
- 2360 mA 24 V AC I maximum while closing
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Control Circuit Voltage 8 Control Circuit Voltage
- 24 V
- Pep Code
- ENVPEP2407003EN
- Pep Verification Date
- 2024-07-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; France, FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; France, FR
- Height Nominal
- 224 mm
- [Ith] Conventional Free Air Thermal Current
- 12 A
- [Ue] Rated Operational Voltage
- 690 V AC power circuit
- Non-dissipating Shock Wave
- 1 kV serial mode IEC 60947-6-22 kV common mode IEC 60947-6-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536504000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Fire Resistance960 °C parts supporting live components IEC 60695-2-12, 650 °C IEC 60695-2-12
Resistance To Fast Transients2 kV 3 serial link IEC 61000-4-4, 4 kV 4 all circuits except for serial link IEC 61000-4-4
Tightening Torquecontrol circuit: 0.8-1.2 N.m flat screwdriver 5 mm, control circuit: 0.8-1.2 N.m Philips no 1 screwdriver 5 mm, power circuit: 1.9-2.5 N.m flat screwdriver 6 mm, power circuit: 1.9-2.5 N.m Philips No 2 screwdriver 6 mm, power circuit: 1.9-2.5 N.m pozidriv No 2 screwdriver 6 mm
Certificate AgencyCE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine
[Ie] Rated Operational Current12 A <= 440 V, 12 A 500 V9 A 690 V
Connections - Terminalscontrol circuit: screw clamp terminals 2 cable(s) 0.75-1.5 mm² flexible without cable end, control circuit: screw clamp terminals 2 cable(s) 0.75-1.5 mm² rigid, power circuit: screw clamp terminals 1 cable(s) 1-6 mm² flexible with cable endpower circuit: screw clamp terminals 2 cable(s) 1-6 mm² flexible with cable end, power circuit: screw clamp terminals 2 cable(s) 1-6 mm² rigid, control circuit: screw clamp terminals 1 cable(s) 0.34-1.5 mm² flexible with cable endcontrol circuit: screw clamp terminals 1 cable(s) 0.75-1.5 mm² flexible without cable end, control circuit: screw clamp terminals 1 cable(s) 0.75-1.5 mm² rigid, control circuit: screw clamp terminals 2 cable(s) 0.34-1.5 mm² flexible with cable endpower circuit: screw clamp terminals 1 cable(s) 1-10 mm² rigid, power circuit: screw clamp terminals 1 cable(s) 2.5-10 mm² flexible without cable end, power circuit: screw clamp terminals 2 cable(s) 1.5-6 mm² flexible without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]3.254321807007126, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 8.739045052257385
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2407003EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2023
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeLU2B
Energy Efficiency OptimizedFalse
Heat Dissipation2-2 W control circuit with LUCA, LUCB, LUCC, LUCD1.7-1.7 W control circuit with LUCM
Immunity To Radioelectric Fields10 V IEC 61000-4-6
Inrush Restraint Duration25 ms AC 50/60 Hz
Network Frequency40...60 Hz
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typereversing power base
RangeTeSys
Resistance To Electrostatic Discharge8 kV 3 in open air IEC 61000-4-28 kV 4 on contact IEC 61000-4-2
ReturnabilityYes
Shock Resistance10 gn power poles open IEC 60068-2-2715 gn power poles closed IEC 60068-2-27
Suitability For Isolationyes
Total Lifecycle Carbon Footprint30 kg CO2 eq.
Vibration Resistance2 gn 5-300 Hz) power poles open IEC 60068-2-274 gn 5-300 Hz) power poles closed IEC 60068-2-27
Thermal Current12 A
Control Circuit Voltage 8 Control Circuit TypeAC
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential In %58
Width Nominal45 mm
[Uc] Control Circuit Voltage24 V AC 50/60 Hz
[Uimp] Rated Impulse Withstand Voltage6 kVIEC 60947-6-2
Halogen-free StatusProduct contains halogen above thresholds
Package Weight(Lbs)1.284 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Product Compatibility
- control unit LUC.X6B, control unit LUC.1XB, control unit LUC.05B, control unit LUC.12B
- Halogene Performance
- Product contains halogen above thresholds
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2407003EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2407003EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD, -25-70 °C with LUCA, LUCB, LUCC, LUCD-25-60 °C with LUCM, -25-60 °C with LUCM, -25-70 °C with LUCA, LUCB, LUCC, LUCD
Ip Degree Of ProtectionIP20 IEC 60947-1 front panel and wired terminals), IP20 IEC 60947-1 other faces)IP40 IEC 60947-1 front panel outside connection zone)
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint29.627064292675325
Environmental DisclosureENVPEP2407003EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- reversing power base
Range Of ProductTeSys Ultra
ETIM
- ETIM 8
- EC001037
ETIM 9EC001037
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
