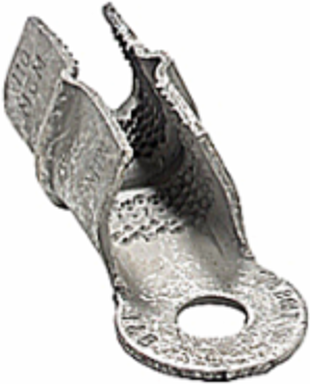

Dragon Tooth 220017 Ring Terminal
- MPN: 220017
- UPC: 078621085553
- PPN: T-B-220017
CAD
$15.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Insulation Piercing Magnet Wire Ring Terminal, Length 2.76 Inches, Width 1.06 Inches, Length of Teeth 1.50 Inches, Width of Teeth .88 Inches, Stud Size 3/8 Inch, Wire Range .100 AWG - .175 AWG 50,000 Circular Mil Area - 115,000 Circular Mil Area, Copper Alloy, Tin Plated
Features
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
- For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
Specifications
European Specifications (ETIM)
- ETIM
- EC001059 Crimp splices for copper conductor
- Model
- Standard version
- Suitable for solid cores
- N
- Suitable for fine strand conductors
- N
- Suitable for round conductors
- Y
- Material
- Copper
- Insulation
- None
- Type of connection
- End connector
AWG-range.100-.175
Sleeve formShort
Useful for stranded conductorsN
Suitable for insulated varnishY
Suitable for flat conductorsY
Surface protectionTinned
Voltage rowUp to 600 V
Oil stop/centre barN
North American Specifications (UNSPSC)
- UNSPSC
- 39121432 Electrical terminals
- Brand Name
- Dragon Tooth
- Special Features
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
- Standard
- UL E9809
IGCC4603 Electrical terminals
TypeRing Terminal
ApplicationFor aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
MaterialCopper
Packaging
- Inner Quantity
- 25
- Outer Quantity
- 250
- Weight Uom
- 11.13 lbs. per 100
Inner Dimensions (inches)6x4.5x3
Outer Dimensions (inches)13x10.7x10.7
