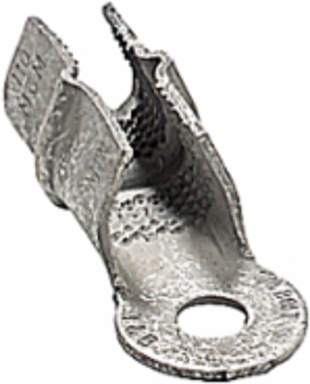

Dragon Tooth 220018 Ring Terminal

MPN: 220018
UPC: 786210855547
PPN: T-B-220018

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$20.19/ EA

Qty:

Loading add to cart quantity...

Description

Insulation Piercing Magnet Wire Ring Terminal, Length 2.76 Inches, Width 1.06 Inches, Length of Teeth 1.50 Inches, Width of Teeth .88 Inches, Stud Size 1/2 Inch, Wire Range .100 AWG - .175 AWG 50,000 Circular Mil Area - 115,000 Circular Mil Area, Copper Alloy, Tin Plated

Features

Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.

Specifications

European Specifications (ETIM)

ETIM: EC001059 Crimp splices for copper conductor

Model: Standard version

Suitable for solid cores: N

Suitable for fine strand conductors: N

Suitable for round conductors: Y

Material: Copper

Insulation: None

Type of connection: End connector

AWG-range.100-.175

Sleeve formShort

Useful for stranded conductorsN

Suitable for insulated varnishY

Suitable for flat conductorsY

Surface protectionTinned

Voltage rowUp to 600 V

Oil stop/centre barN

North American Specifications (UNSPSC)

UNSPSC: 39121432 Electrical terminals

Brand Name: Dragon Tooth

Special Features: Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.

Standard: UL E9809

IGCC4603 Electrical terminals

TypeRing Terminal

ApplicationFor aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.

MaterialCopper

Packaging

Inner Quantity: 25

Outer Quantity: 250

Weight Uom: 10 lbs. per 100

Inner Dimensions (inches)6x4.5x3

Outer Dimensions (inches)24x11.25x4
