Dragon Tooth 204210-5 Ring Terminal
Dragon Tooth 204210-5 Ring Terminal
- MPN: 204210-5
- PPN: T-B-204210-5
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3.12/ EA
Description

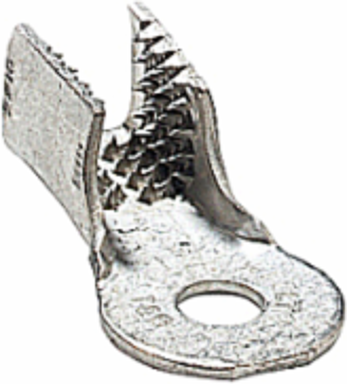

Insulation Piercing Magnet Wire Ring Terminal, Length 1.58 Inches, Width .81 Inches, Length of Teeth .61 Inches, Width of Teeth .53 Inches, Stud Size 1/2 Inch, Wire Range #12 AWG - #4 AWG 10,380 Circular Mil Area - 52,480 Circular Mil Area, Copper Alloy, Tin Plated
Features
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
- For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121432 Electrical terminals
- Brand Name
- Dragon Tooth
- Special Features
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
- Standard
- UL E9809
IGCC4603 Electrical terminals
TypeRing Terminal
ApplicationFor aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
MaterialCopper
European Specifications (ETIM)
- ETIM
- EC001059 Crimp splices for copper conductor
- Model
- Standard version
- Suitable for solid cores
- N
- Suitable for fine strand conductors
- N
- Suitable for round conductors
- Y
- Material
- Copper
- Insulation
- None
- Type of connection
- End connector
AWG-range12-4
Sleeve formShort
Useful for stranded conductorsN
Suitable for insulated varnishY
Suitable for flat conductorsY
Surface protectionTinned
Voltage rowUp to 600 V
Oil stop/centre barN
Packaging
- Inner Quantity
- 100
- Outer Quantity
- 500
- Weight Uom
- 3 lbs. per 100
Inner Dimensions (inches)6x3.2x4.6
Outer Dimensions (inches)10.4x8.8x7.1
