Dragon Tooth 204210-1 Ring Terminals
- MPN: 204210-1
- UPC: 078621086772
- PPN: T-B-204210-1
CAD
$3.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

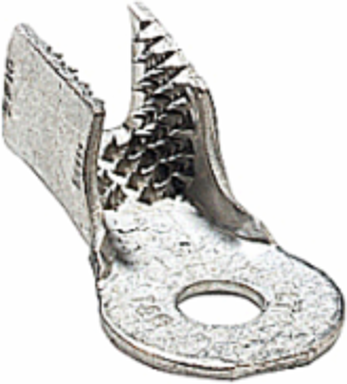

Insulation Piercing Magnet Wire Ring Terminal, Length 1.58 Inches, Width .81 Inches, Length of Teeth .61 Inches, Width of Teeth .53 Inches, Stud Size 1/4 Inch, Wire Range #12 AWG - #4 AWG 10,380 Circular Mil Area - 52,480 Circular Mil Area, Copper Alloy, Tin Plated
Features
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
- For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Dragon Tooth
- Special Features
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
- Standard
- UL E9809
- Finish
- Tin Plated
IGCC4669 Wire or cable compression splice
TypeRing Terminals
ApplicationFor aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
MaterialCopper
European Specifications (ETIM)
- ETIM
- EC001059 Crimp splices for copper conductor
- Model
- Standard version
- Suitable for solid cores
- N
- Suitable for fine strand conductors
- N
- Suitable for round conductors
- Y
- Material
- Copper
- Insulation
- None
- Type of connection
- End connector
AWG-range12-4
Sleeve formShort
Useful for stranded conductorsN
Suitable for insulated varnishY
Suitable for flat conductorsY
Surface protectionTinned
Voltage rowUp to 600 V
Oil stop/centre barN
Packaging
- Inner Quantity
- 100
- Outer Quantity
- 500
- Weight Uom
- 4 lbs. per 100
Inner Dimensions (inches)6x4.5x3.1
Outer Dimensions (inches)10.5x8.8x7
