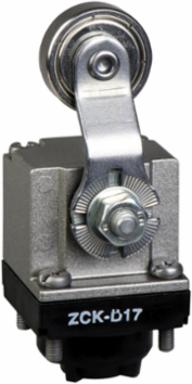

Telemecanique Sensors ZCKD17 Limit switch head, Limit switches XC Standard, ZCKD, steel ball bearing mounted roller lever
- MPN: ZCKD17
- PPN: TES-ZCKD17
- UNSPSC: 39122213
CAD
$53.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch head, Limit switches XC Standard, ZCKD, steel ball bearing mounted roller lever
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | lateral approach, 2 directions |
|---|---|
| Movement Of Operating Head | rotary |
| Type Of Operator | roller lever spring return metal ball bearing mounted) |
| Associated Body | ZCKLD31 || ZCKMD35H29 || ZCKL7 || ZCKMD39H7 || ZCKL8 || ZCKL1H7 || ZCKM8H7 || ZCKM1H7 || ZCKM7 || ZCKMD37H7 || ZCKM9H29 || ZCKM5 || ZCKMD31 || ZCKLD39H7 || ZCKL1 || ZCKM7H29 || ZCKL8H7 || ZCKM8 || ZCKMD31H29 || ZCKL7H7 || ZCKLD37 || ZCKL6H7 || ZCKLD35 || ZCKM8H29 || ZCKM7H7 || ZCKL6 || ZCKL5 || ZCKLD31H7 || ZCKM1 || ZCKLD37H7 || ZCKMD31H7 || ZCKM6H7 || ZCKMD37 || ZCKL5H7 || ZCKM6 || ZCKMD37H29 || ZCKM9 || ZCKMD39 || ZCKMD35H7 || ZCKMD39H29 || ZCKMD35 || ZCKM6H29 || ZCKLD39 || ZCKLD35H7 || ZCKM1H29 || ZCKM5H29 || ZCKM5H7 |
| Device Short Name | ZCKD |
| Series Name | standard format |
|---|---|
| Range Of Product | Telemecanique Limit switches XC Standard |
| Product Or Component Type | limit switch head |
| Product Compatibility | XCKM || XCKL |
| Head Type | rotary head |
Complementary
| Switch Actuation | by 30° cam |
|---|---|
| Head Material | metal |
| Positive Opening | with |
|---|
Environment
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Environmental Characteristic | standard environment |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP110614EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
|---|
