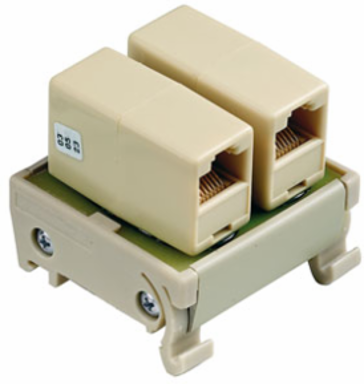

Weidmuller 8555440000 RS RJ45 2WAY

  • MPN: 8555440000
  • PPN: WDM-8555440000

CAD

$90.19

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Interface, RS RJ45, 2 x RJ45 connector

Documentation & Downloads

Specifications

Approvals

ApprovalsCE, EAC
ROHSConform

Dimensions And Weights

Length46.8 mm
Width45 mm
Height44.2 mm
Net weight60 g
Length (inches)1.843 inch
Width (inches)1.772 inch
Height (inches)1.74 inch

Insulation Coordination (En50178)

According toDIN EN 50178
Surge voltage categoryIII
Pulse voltage test (1,2/50μs)0.8 kV
Rated insulation voltage< 50 V AC
Pollution severity level2
Insulation test voltage0.35 kVAC

Connection Data

Connection on control side2 x RJ45 connector
Connection (field side)2 x RJ45 plug-in connectors
Transmission rateCat. 5, 100 MBit/s
Contact material (control side)Phosphor-bronze 6μ AU
Number of poles (field side)8 P

Classifications

ETIM 6.0EC002780
eClass 9.027-14-11-52
eClass 10.027-14-11-52
ETIM 7.0EC002780
eClass 9.127-14-11-52
UNSPSC30-21-18-01

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Temperatures

Operating temperature, max.55 °C
Storage temperature, max.70 °C
Operating temperature0...55 °C
Operating temperature, min.0 °C
Storage temperature, min.-40 °C
Storage temperature-40...70 °C

Rating Data

Rated voltage50 V
Total operating current1.5 A
Rated current per connection1 A
RS RJ45 2WAY
RS RJ45 2WAY
