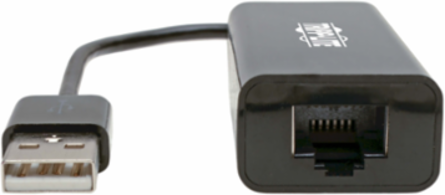

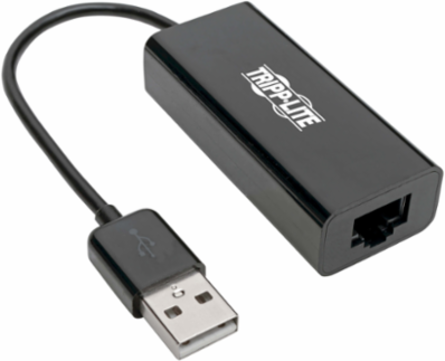

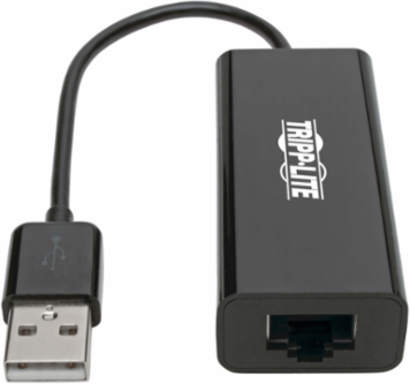

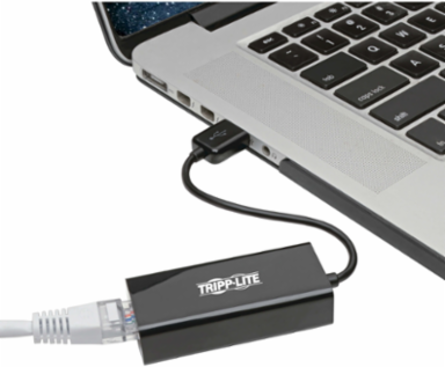

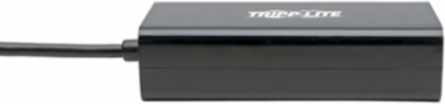

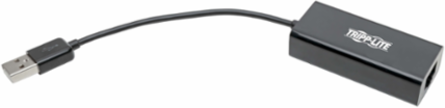

Tripp Lite U236-000-R USB 2.0 Ethernet NIC Adapter, 10/100 Mbps, RJ45, Plug and Play, Black
- MPN: U236-000-R
- UPC: 037332163127
- PPN: TRP-U236-000-R
CAD
$33.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
USB 2.0 Ethernet NIC Adapter, 10/100 Mbps, RJ45, Plug and Play, Black
Features
- Connects you to a wired Ethernet network when Wi-Fi is weak or unavailable
- Supports USB 2.0 speeds to ensure efficient data transfers
- Sustains full 10/100 Mbps network speeds for fast Ethernet browsing
- Works with most laptops and PCs running Windows, Mac or Linux
- USB 2.0 Ethernet adapter powered via USB, so no external power supply is required
- 3-year limited warranty
- Connects Your USB Device to a Wired Ethernet Network without an Internet Card Installed
- Plug and Play with No Power Supply Needed
- Delivers Full Ethernet Performance
Documentation & Downloads
Specifications
Features & Specifications
| USB Specification | USB 2.0 (up to 480 Mbps) |
|---|---|
| Recommended Category Cable | Cat5/5e/6 Cables |
| Full Duplex Support | Yes |
| Remote Wakeup Support | Yes |
| Driver Required | Yes |
|---|---|
| Auto MDIX Support | Yes |
| Suspend Mode Support | Yes |
| Technology | Cat5/5e; Cat6; USB 2.0 (High Speed); USB |
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Side A - Connector 1 | USB A (MALE) |
|---|---|
| Connector Plating | Nickel |
| Side B - Connector 1 | RJ45 (FEMALE) |
|---|
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | ABS, PVC |
| Shipping Weight (lbs.) | 0.10 |
| Unit Packaging Type | Box |
| Color | Black |
|---|---|
| Shipping Dimensions (hwd / in.) | 0.50 x 5.20 x 5.30 |
| Unit Dimensions (hwd / in.) | 0.6 x 2.6 x 0.9 |
| Unit Weight (lbs.) | 0.05 |
Input
| Bus Powered | Yes |
|---|
| Product Length (in.) | 7.5 |
|---|
Communications
| Network Speed | 10/100 Mbps |
|---|
| IEEE Standards Supported | 802.3; 802.3ab; 802.3az; 802.3u; 802.3x |
|---|
Environmental
| Operating Temperature Range | 32 to 158 F (0 to 70 C) |
|---|---|
| Relative Humidity | 10% to 90 % RH, Non-Condensing |
| Power Consumption (Watts) | 0.75 |
| Storage Temperature Range | 14 to 176 F (-10 to 80 C) |
|---|---|
| BTUs | 2.6 BTU/Hr |
Overview
| UPC Code | 037332163127 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
