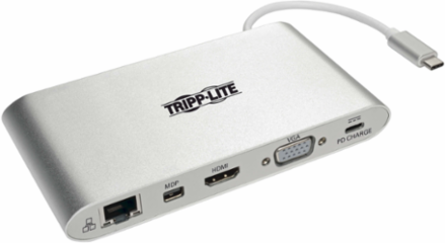

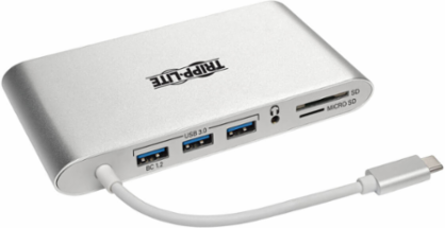

Tripp Lite U442-DOCK1 USB-C Dual Display Dock with 4K HDMI, VGA, Mini DP, Gigabit Ethernet
- MPN: U442-DOCK1
- UPC: 037332193834
- PPN: TRP-U442-DOCK1
CAD
$136.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

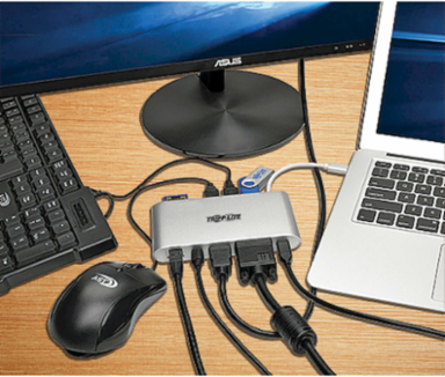

Convert your MacBook, Chromebook, tablet or laptop into a versatile workstation via its USB-C or Thunderbolt 3 port. Recommended for connecting an external display, accessing Gigabit Ethernet, transferring data and displaying video.
Features
- Mini DisplayPort, VGA and HDMI ports
- Ethernet port supports 10/100/1000 Mbps speeds
- USB-A ports support data transfer rates up to 5 Gbps
- Memory card slots for external memory access
- USB-C Power Delivery port supports power input up to 20V 3A
- 3-year limited warranty
Documentation & Downloads
Specifications
Features & Specifications
| Max Supported Video Resolution | MDP/HDMI: 3840 X 2160 (4K X 2K) @ 30HZ; VGA: 1920 X 1200 (1080P) @ 60HZ |
|---|---|
| HDMI Specification | 1.4 |
| USB Specification | USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps) |
| Recommended Category Cable | Cat5/Cat5e/Cat6 Cables |
| Auto MDIX Support | Yes |
| Suspend Mode Support | Yes |
| Technology | Cat5/5e; Cat6; DisplayPort; HDMI; Stereo Audio; USB; USB 3.0 (SuperSpeed); USB 3.1 (Gen 1); VGA/SVGA; PD Charging |
| USB Power Delivery (PD) Charging Specification | 2.0 |
| Displayport Specification | 1.2 |
|---|---|
| HDCP Specification | 1.4 |
| Driver Required | No |
| USB Power Delivery (PD) Charging Support | Yes |
| Full Duplex Support | Yes |
| Remote Wakeup Support | Yes |
| SD Card Specification | SD; Micro SD |
Battery
| Battery Charging (1.2 Port) | Yes |
|---|
Certifications
| Certifications | Tested to CE, FCC, RoHS, REACH |
|---|
Connections
| Ports | 11 |
|---|---|
| Side A - Connector 1 | USB C (MALE) |
| Side B - Connector 2 | (3) USB 3.0 A (FEMALE) |
| Side B - Connector 4 | RJ45 (FEMALE) |
| Side B - Connector 6 | 3.5MM (FEMALE) |
| Dock Connectors | 3 x USB3.0, 3.5mm Stereo, RJ45 LAN, HDMI, MINI DISPLAYPORT, VGA, MICRO SD, SD, USB-C CHARGING |
|---|---|
| Side B - Connector 1 | HD15 (FEMALE); HDMI (FEMALE); MINI DISPLAYPORT (FEMALE) |
| Side B - Connector 3 | MICRO SD (FEMALE); SD (FEMALE) |
| Side B - Connector 5 | USB Type-C (FEMALE) |
| Connector Plating | Nickel |
Physical
| Cable Jacket Rating | VW-1 |
|---|---|
| Material of Construction | PVC and Aluminum |
| Shipping Weight (lbs.) | 0.50 |
| Unit Packaging Type | Box |
| Color | Silver; White |
|---|---|
| Shipping Dimensions (hwd / in.) | 1.00 x 5.20 x 6.50 |
| Unit Dimensions (hwd / in.) | 0.67 x 2.95 x 5.39 |
| Unit Weight (lbs.) | 0.22 |
Input
| Bus Powered | Yes |
|---|---|
| Product Length (cm.) | 21.08 |
| Product Length (m.) | 0.21 |
| Product Length (in.) | 8.3 |
|---|---|
| Product Length (ft.) | 0.69 |
Output
| Charging Ports / Amps | 1.5A; 3A |
|---|
| Charging Watts | 60 |
|---|
Communications
| Network Speed | 1Gbps |
|---|
| IEEE Standards Supported | 802.3; 802.3u; 802.3az; 802.3x |
|---|
Environmental
| Operating Temperature Range | 32 to 113 F (0 to 45 C) |
|---|---|
| BTUs | 17.1 BTU/Hr |
| Operating Humidity Range | 10% to 85% RH, Non-Condensing |
| Storage Temperature Range | 14 to 158 F (-10 to 70 C) |
|---|---|
| Power Consumption (Watts) | 5 |
| Storage Humidity Range | 5% to 90% RH, Non-Condensing |
Overview
| UPC Code | 037332193834 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 3-year limited warranty |
|---|
