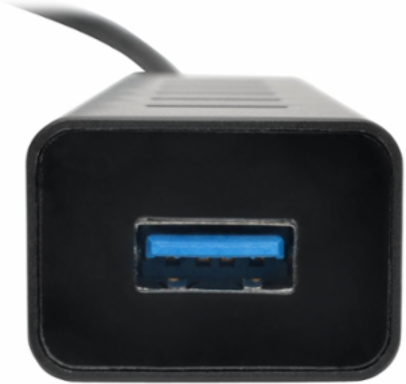

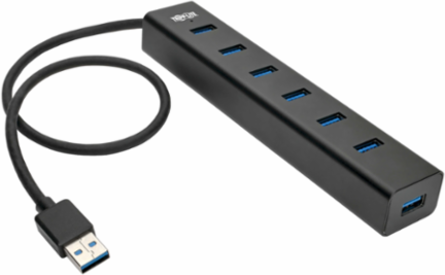

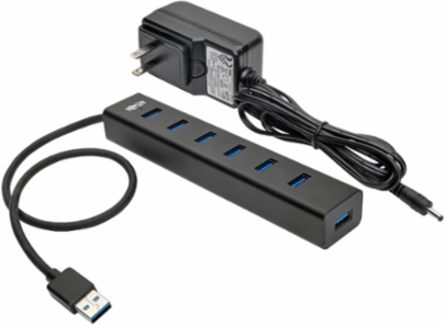

Tripp Lite U360-007-AL 7-Port Portable USB 3.0 Hub, Aluminum, 5V/3A Power Supply
- MPN: U360-007-AL
- UPC: 037332201027
- PPN: TRP-U360-007-AL
CAD
$122.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

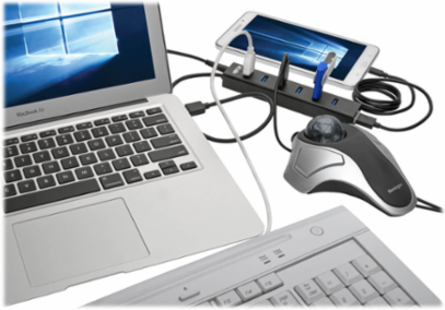

Connects to the USB 3.0 port on your laptop, Ultrabook or computer to give you 7 external USB 3.0 ports.
Features
- USB ports can provide up to 1.5A for charging mobile devices*
- All seven ports support USB Battery Charging (BC) specification v1.2
- Supports USB 3.0 data transfer rates up to 5 Gbps
- Plug and play—no drivers or software needed
- Fits easily into pocket, backpack, briefcase or laptop bag
- Backward compatible with USB 2.0 and USB 1.1
- 3-year limited warranty
- Increases Your Computer’s USB 3.0 Ports from 1 to 7
- Excellent Speed and Versatile Performance
- Take the Hub Anywhere
Documentation & Downloads
Specifications
Features & Specifications
- USB Specification
- USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
- Technology
- USB 3.0 (SuperSpeed); USB
Driver RequiredNo
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH
Connections
- Ports
- 7
- Side B - Connector 1
- (7) USB 3.0 A (FEMALE)
Side A - Connector 1USB 3.0 A (MALE)
Connector PlatingNickel
Physical
- Cable Jacket Rating
- VW-1
- Material of Construction
- Aluminum
- Shipping Weight (lbs.)
- 0.80
- Unit Packaging Type
- Box
ColorBlack
Shipping Dimensions (hwd / in.)2.20 x 4.40 x 7.70
Unit Dimensions (hwd / in.)0.83 x 6.2 x 1.2
Unit Weight (lbs.)0.53
User Interface, Alerts & Controls
- LED Indicators
- White (Power)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 127; 200; 208; 220; 230; 240

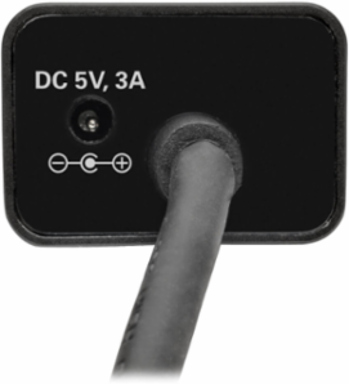

- External Power Supply Output Specs (V / A)
- 5V / 3A
- External Power Supply DC Barrel Connector Specs
- OD: 3.5 x 1.35 x 10mm, Positive Pin, Negative Sleeve
- External Power Supply Certifications
- CE; FCC; UL; cUL; TUV; CCC; RoHS
- Product Length (ft.)
- 1.8
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.6A
External Power Supply Cord Length (ft.)5
External Power Supply Plug(s)NEMA 1-15P North America
Bus PoweredNo
Environmental
- Operating Temperature Range
- -4 to 158 F (-20 to 70 C)
- Relative Humidity
- 10% to 90% RH, Non-Condensing
- Power Consumption (Watts)
- 1.4
Storage Temperature Range14 to 158 F (-10 to 70 C)
BTUs4.7 BTU/Hr
Power Provided to Connected Device(s)5V 1.5A (7.5W) Output per USB Port
Overview
- UPC Code
- 037332201027
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
