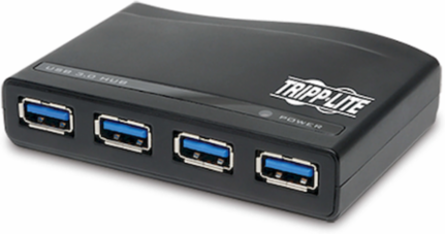

Tripp Lite U360-004-R 4-Port USB 3.0 SuperSpeed Hub, 5Gbps Transfer Speed, Includes External Power Supply
Tripp Lite U360-004-R 4-Port USB 3.0 SuperSpeed Hub, 5Gbps Transfer Speed, Includes External Power Supply
- MPN: U360-004-R
- UPC: 037332161154
- PPN: TRP-U360-004-R
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$109.03/ EA
Features
- USB 3.0 SuperSpeed Compatible
- 5Gbps Transfer Speed - 10X as fast as USB 2.0
- All 4 ports are USB Battery Charging (BC) 1.2-compliant, providing up to 1.5A for charging mobile devices

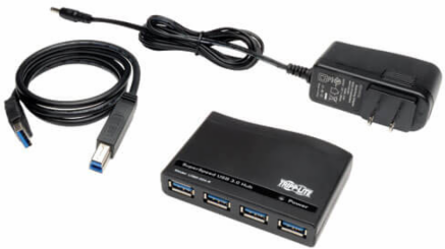

- External power supply included for use with more power hungry devices
- 3-year limited warranty
Specifications
Features & Specifications
- USB Specification
- USB 3.0 (up to 5 Gbps); USB 3.1 Gen 1 (up to 5 Gbps)
- Technology
- USB 3.0 (SuperSpeed); USB
Driver RequiredNo
Certifications
- Certifications
- Tested to CE, FCC, RoHS, REACH

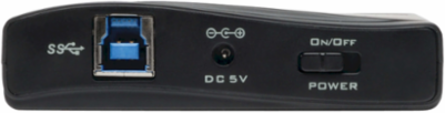

Connections
- Ports
- 4
- Side B - Connector 1
- (4) USB 3.0 A (FEMALE)
Side A - Connector 1USB 3.0 A (MALE)
Connector PlatingNickel
Physical
- Color
- Black
- Shipping Dimensions (hwd / in.)
- 5.35 x 2.87 x 4.72
- Unit Packaging Type
- Box
Material of ConstructionABS
Shipping Weight (lbs.)0.66
Unit Weight (lbs.)0.13
User Interface, Alerts & Controls
- LED Indicators
- Blue (Power)
Input
- Voltage Compatibility (VAC)
- 100; 110; 120; 127; 200; 208; 220; 230; 240
- External Power Supply Output Specs (V / A)
- 5V / 2A
- External Power Supply DC Barrel Connector Specs
- OD: 3.5 x 1.35 x 10mm, Positive Pin, Negative Sleeve
- External Power Supply Certifications
- FCC; UL; cUL; RoHS
External Power Supply Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.35A
External Power Supply Cord Length (ft.)5
External Power Supply Plug(s)NEMA 1-15P North America
Bus PoweredNo
Environmental
- Operating Temperature Range
- -4 to 158 F (-20 to 70 C)
- Relative Humidity
- 20% to 80% RH, Non-Condensing
- Power Consumption (Watts)
- 0.7
Storage Temperature Range-4 to 185 F (-20 to 85 C)
BTUs2.4 BTU/Hr
Power Provided to Connected Device(s)5V 0.9A (4.5W) Output per USB Port
Overview
- UPC Code
- 037332161154
Warranty
- Product Warranty Period (Worldwide)
- 3-year limited warranty
Downloads
