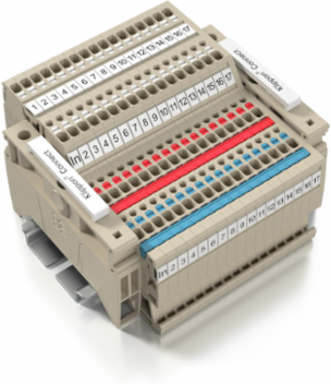

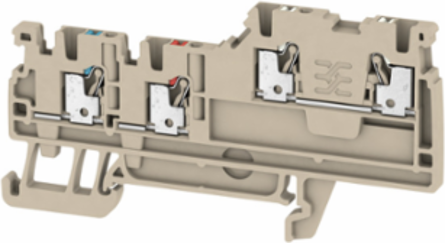

Weidmuller 1992260000 Initiator/Actuator Terminal Block, 1.5 mm2, 250 V, 13.5 A, Push In
- MPN: 1992260000
- PPN: WDM-1992260000
CAD
$7.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Initiator/actuator terminal, PUSH IN, 1.5 mm², 250 V, 13.5 A, dark beige
Documentation & Downloads
Specifications
Approvals
- Approvals
- BURVER, CE, CSA, cURus, DNV GL, IECEXTUR, TUEVNATEX
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 3.5 mm
- Height
- 80 mm
- Depth
- 42 mm
- Depth including DIN rail
- 43 mm
Width (inches)0.138 inch
Height (inches)3.15 inch
Depth (inches)1.654 inch
Net weight6.54 g
Csa Rating Data
- Certificate No. (CSA)
- 200039-70089609
- Voltage size D (CSA)
- 150 V
- Wire cross section min. (CSA)
- 26 AWG
Current size D (CSA)13 A
Wire cross section max. (CSA)14 AWG
Additional Technical Data
- Installation advice
- Rail
- Snap-on
- No
- Type of mounting
- TS 35
Open sidesright
Type of fixingSnap-on
With snap-in pegsNo
Material Data
- Material
- Wemid
- Colour of operational elements
- blue, red, white
Colourdark beige
UL 94 flammability ratingV-0
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000900
- eClass 9.0
- 27-14-11-28
- eClass 10.0
- 27-14-11-28
ETIM 7.0EC000900
eClass 9.127-14-11-28
Product Information
- Product information
- For the wire end ferrules H1/10 and H1.5/10 a stripping length of 10 mm is to apply.
System Specifications
- End cover plate required
- Yes
- Number of levels
- 2
- PE connection
- No
- N-function
- Yes
- PEN function
- No
Number of potentials3
Levels cross-connected internallyNo
RailTS 35
PE functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
Pe Rating Data
- PEN function
- No
Rating Data
- Rated cross-section
- 1.5 mm²
- Rated current
- 13.5 A
- Standards
- In accordance with IEC 60947-7-1
- Power loss in accordance with IEC 60947-7-x
- 0.56 W
- Pollution severity
- 3
Rated voltage250 V
Current at maximum wires13.5 A
Volume resistance according to IEC 60947-7-x1.83 mΩ
Rated impulse withstand voltage4 kV
Surge voltage categoryIII
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- TUEV17ATEX8031U
- Max. voltage (ATEX)
- 220 V
- Wire cross section max. (ATEX)
- 1.5 mm²
- Current (IECEX)
- 12 A
- Marking EN 60079-7
- Ex eb II C Gb
Certificate No. (IECEX)IECEXTUR17.0016U
Current (ATEX)12 A
Max. voltage (IECEX)220 V
Wire cross section max. (IECEX)1.5 mm²
Ex 2014/34/EU labelII 2 G D
Conductors For Clamping (Rated Connection)
- Blade size
- 0.4 x 2.0 mm
- Clamping range, min.
- 0.14 mm²
- Connection cross-section, stranded, min.
- 0.5 mm²
- Gauge to IEC 60947-1
- A1
- Stripping length
- 8 mm
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 1.5 mm²
Clamping range, max.1.5 mm²
Connection cross-section, stranded, max.1.5 mm²
Connection directiontop
Number of connections4
Type of connectionPUSH IN
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.1 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 26 AWG
- Conductor size Field wiring min. (cURus)
- 26 AWG
- Voltage size D (cURus)
- 150 V
Conductor size Factory wiring max. (cURus)14 AWG
Conductor size Field wiring max. (cURus)14 AWG
Current size D (cURus)13 A
