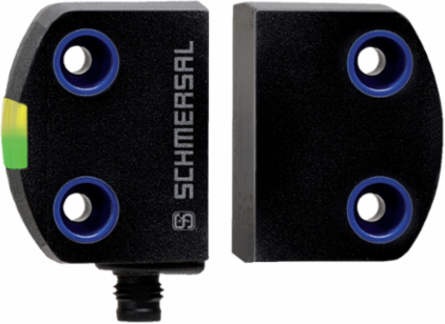

Schmersal 103003602 RSS260-D-ST Electronic Safety Sensor 24 VDC, 39.2 mm Width, IP65/IP67
- MPN: 103003602
- PPN: SCM-103003602
CAD
$261.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
RSS260-D-ST Electronic Safety Sensor 24 VDC, 39.2 mm Width, IP65/IP67
Features
- Universal coding with RFID technology
- 1 x connector plug M8
- Frontal and lateral actuation enabled
- Thermoplastic enclosure
- Simple mounting without additional angle
- RFID-technology for needs-based protection against tampering
Documentation & Downloads
Specifications
Electrical data - Safety digital inputs
- Designation, Safety inputs
- X1 and X2
- Test pulse duration, maximum
- 1 ms
- Classification ZVEI CB24I, Sink
- C1
Current consumption of the safety inputs5 mA
Test pulse interval, minimum100 ms
Classification ZVEI CB24I, SourceC1 | C2 | C3
Electrical data
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
- No-load supply current I
- 35 mA
- Operating current
- 600 mA
- Time to readiness, maximum
- 2,000 ms
Operating current, minimum0.5 mA
Rated operating voltage24 VDC
Required rated short-circuit current100 A
Switching frequency, maximum1 Hz

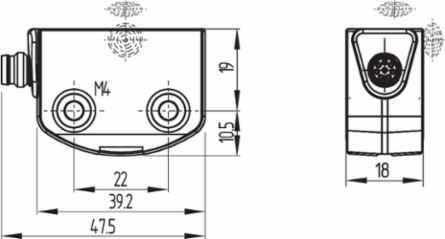

Mechanical data - Dimensions
- Length of sensor
- 29.5 mm
- Height of sensor
- 18 mm
Width of sensor39.2 mm

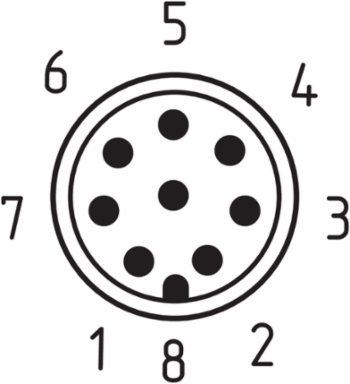

Pin assignment
- PIN 1
- A1 U | : White
- PIN 3
- A2 GND: Green
- PIN 5
- OUT Diagnostic output OUT Grey
- PIN 7
- Y2 safety output 2: Blue
PIN 2X1 safety input 1: Brown
PIN 4Y1 safety output 1: Yellow
PIN 6X2 safety input 2: Pink
PIN 8IN without function: Red
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
General data - Features
- Diagnostic output
- Yes
- Cross-circuit detection
- Yes
- Safety functions
- Yes
- Integral system diagnostics, status
- Yes
- Number of semi-conductor outputs with signaling function
- 1
Short circuit detectionYes
Series-wiringYes
CascadableYes
Number of LEDs3
Number of fail-safe digital outputs2
General data
- Standards
- EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508
- Coding level according to EN ISO 14119
- Low
- Frequency band RFID
- 125 kHz
- Housing construction form
- Block
- Sensor topology
- Sensor for series wiring
- Active area
- Glass-fibre, thermoplastic
- Reaction time, maximum
- 100 ms
- Reaction time, switching off safety outputs via actuator, maximum
- 100 ms
CodingUniversal coding
Working principleRFID
Transmitter output RFID, maximum-6 dB/m
Installation conditions (mechanical)not flush
Enclosure materialPlastic, thermoplastic, self-extinguishing
Gross weight47 g
Duration of risk, maximum200 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 61508
- Category
- 4
- PFD value
- 1.20 x 10⁻⁴
- Mission time
- 20 Year(s)
Performance Level, up toe
PFH value6.80 x 10⁻¹⁰ /h
Safety Integrity Level (SIL), suitable for applications in3
Electrical data - Safety digital outputs
- Designation, Safety outputs
- Y1 and Y2
- Output current, (fail-safe output), maximum
- 0.25 A
- Voltage drop U
- 1 V
- Voltage, Utilisation category DC-12
- 24 VDC
- Voltage, Utilisation category DC-13
- 24 VDC
- Test pulse interval, typical
- 1000 ms
- Classification ZVEI CB24I, Source
- C2
Rated operating current (safety outputs)250 mA
Design of control elementsshort-circuit proof, p-type
Leakage current I0.5 mA
Current, Utilisation category DC-120.25 A
Current, Utilisation category DC-130.25 A
Test pulse duration, maximum1 ms
Classification ZVEI CB24I, SinkC1 | C2
Ambient conditions
- Degree of protection
- IP65 | IP67
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, maximum
- 93 %
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
- Permissible installation altitude above sea level, maximum
- 2,000 m
Ambient temperature-25 ... +65 °C
Storage and transport temperature, maximum+85 °C
Note (Relative humidity)non-condensing | non-icing
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Connector M8, 8-pole
- Note (series-wiring)
- Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Note (length of the sensor chain)Cable length and cross-section change the voltage drop dependiing on the output current
Electrical data - Diagnostic outputs
- Designation, Diagnostic outputs
- OUT
- Voltage drop U
- 2 V
- Current, Utilisation category DC-12
- 0.05 A
- Current, Utilisation category DC-13
- 0.05 A
Operating current50 mA
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Mechanical data - Switching distances according EN IEC 60947-5-3
- Typical switching distance, frontal
- 12 mm
- Assured switching distance "ON", frontal
- 10 mm
- Assured switching distance "ON", lateral
- 6 mm
- Note (S
- The specifications of the safety switching distance S | refer to a temperature range of | -10 °C ... +60 °C. For a temperature range of -25 °C ... +65 °C, S | is reduced by 2 mm.
Typical switching distance, lateral9 mm
Assured switching distance "OFF", frontal18 mm
Assured switching distance "OFF", lateral15 mm
Note (switching distance)Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the tolerance range.
Mechanical data
- Actuating panels
- lateral | front side
- Hysteresis (Switching distance), maximum
- 2 mm
- Note (Repeat accuracy R)
- Axial offset: The long side allows for a maximum height misalignment (x) of sensor and actuator of 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm (see figure: Operating principle).Minimum 100 mm clearance in case of approach from side.
- Type of the fixing screws
- 2x M4
Active arealateral | front
Repeat accuracy R0.5 mm
MountingA 20 mm screw length usually suffices to mount the sensor. When the mounting plates are used, we recommend 25 mm long screws.
Tightening torque of the fixing screws, maximum0.8 Nm
Accessory
- Recommendation (actuator)
- RST16-1 | RST-U-2 | RST260-1
Recommended safety switchgearPROTECT PSC1 | SRB-E-301ST | SRB-E-201LC
Approvals - Standards
- Certificates
- TÜV | cULus | FCC | IC | UKCA
Electrical data - Electromagnetic compatibility (EMC)
- Interfering radiation
- IEC 61000-6-4
EMC ratingIEC 60947-3
Status indication
- Note (LED switching conditions display)
- LED yellow: Operating condition | LED green: Supply voltage | LED red: Fault
