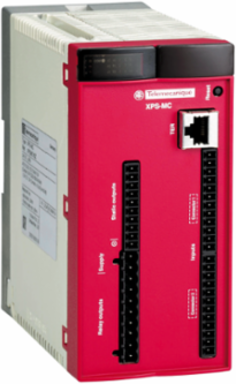

Telemecanique Sensors XPSMC16ZP safety controller XPS-MC - 24 V DC - 16 input - 32 LEDs signalling
Telemecanique Sensors XPSMC16ZP safety controller XPS-MC - 24 V DC - 16 input - 32 LEDs signalling
- MPN: XPSMC16ZP
- PPN: SCH-XPSMC16ZP
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4010.06/ EA
Description
safety controller XPS-MC - 24 V DC - 16 input - 32 LEDs signalling
Specifications
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -25-85 °C
Ip Degree Of ProtectionIP20 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406025EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1406025EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 151.5 mm
- Mounting Support
- mounting plate
- Power Consumption In W
- 12 W
- Response Time
- configurable : 20 ms or 30 ms with software XPSMCWIN
- Minimum Output Current
- 10 mA relay output
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV III IEC 60647-5-1, DIN VDE 0110 part 1
- Output Type
- 2 relays, 2 NO contacts (4 NO total) || solid state, 6, volt-free
- Parity
- even Modbus || no Modbus || odd Modbus
- Supported Modbus Function
- 01 8-bit output data/32-bit input data || 02 32-bit input data/8-bit output data || 03 information and errors
- Local Signalling
- 32 LEDs
- Maximum Line Resistance
- 100 Ohm <2000 m
- Width
- 74 mm
- [Uc] Control Circuit Voltage
- 28.8 V
- Synchronisation Time Between Inputs
- depending on configuration selected
- Breaking Capacity
- 180 VA holding AC-15 C300 relay output || 1800 VA inrush AC-15 C300 relay output
[Ith] Conventional Free Air Thermal Current16 A relay output || 6.5 A static output circuit
Output Thermal Current4 A for both outputs simultaneously || 6 A for 1 output and 2 A for the other relay output
Minimum Output Voltage17 V relay output
Data Format1 start bit/8 data bits || 1 stop bit even or odd || 2 stop bits without parity || RTU (Remote Terminal Unit) mode
Associated Fuse Rating16 A gL power supply || 4 A gL relay output || 6 A fast blow relay output
Net Weight0.82 kg
[Ui] Rated Insulation Voltage300 V 2)IEC 60647-5-1, DIN VDE 0110 part 1
Exchange Size14 words
Method Of Accessslave
Number Of Addresses1-125 Profibus || 1-247 Modbus
Input Protection Typeexternal fuse 16 A
Depth153 mm
Function Of Moduledynamic monitoring of hydraulic valves on linear presses || eccentric press || emergency stop monitoring, with or without time delay, 1 or 2-channel wiring || enabling switch monitoring, 2 or 3 contacts || foot switch monitoring || guard monitoring for injection presses and blowing machines || guard monitoring with 1 or 2 limit switches || hydraulic press || magnetic switch monitoring category 4 EN/IEC 61496 || monitoring safety stop at top dead centre on eccentric press category 3 EN 574/ISO 13851 || muting function of light curtains || position selector || safety mat monitoring || safety time delays || shaft/chain breaking monitor || zero speed detection || light curtain monitoring category 4 IEC 61496 || two-hand control category 3 EN 574/ISO 13851
Breaking Capacity2 A 24 V static output circuit || 1.5 A 24 V DC-13)50 ms relay output
Specifications
- Product Certifications
- UL || CSA || TÜV
- Range Of Product
- Preventa Safety automation
- Number Of Inputs
- 16
- Safety Module Name
- XPSMC
- Communication Port Protocol
- Modbus 1 RJ45, serial link 1200 bps, 2400 bps, 4800 bps, 9600 bps or 19200 bps || Profibus 1 SUB-D 9-pin female, serial link 12 Mbps
- Safety Level
- can reach PL e/category 4 EN 954-1/EN/ISO 13849-1 || can reach SIL 3 IEC 61508
[Us] Rated Supply Voltage24 V DC - 20...20 %
StandardsEN 1760-1/ISO 13856-1 || EN 574/ISO 13851 || IEC 60947-5-1 || IEC 61508 || IEC 60204-1 || EN 954-1/EN/ISO 13849-1 || IEC 61496-1
Product Or Component Typeconfigurable safety controller
Type Of Startconfigurable
Safety Use Categorycategory 4 maximum EN 954-1/EN/ISO 13849-1 || PLE maximum ISO 13849-1 || SIL 3 maximum IEC 61508
