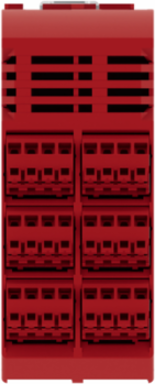

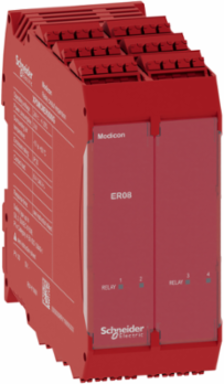

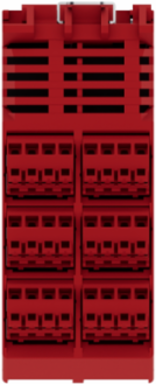

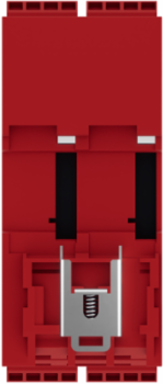

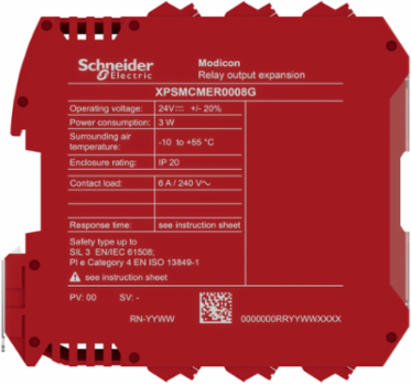

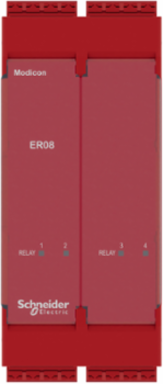

Schneider Electric XPSMCMER0008G expansion module, Modicon MCM, 4 safety relay outputs, spring
- MPN: XPSMCMER0008G
- PPN: SCH-XPSMCMER0008G
CAD
$671.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This safe expansion module is designed for relay outputs and belongs to the Modicon MCM, a range of Modular safety controllers. It has 8 forcibly guided contact safety relay outputs (8 NO + 4 NC) and 4 inputs for Start/Restart interlock and external device monitoring. It figures LEDs on its front face to display the status, removable spring clamp terminals for electrical connection and is IP20-rated. It does not require the backplane expansion connectors as it is directly wired to the selected OSSD. It has a rated supply voltage of 24V DC, a maximum power dissipation of 3W, and a Switching voltage of 10V DC. It has an electrical isolation between the contacts and the control. It weighs 0.375kg. Its dimensions are 45mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It uses monitoring logic, circuit protection, and redundant relays for fail-safe operation. It is certified by the TüV SÜD, RCM, cULus. It reaches Category 4, PL e, according to EN/ISO 13849-1, SIL CL 3, and IEC/EN 61508, IEC/EN 60261. It is sold in a 1-piece package. It instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM range is designed to provide the most comprehensive protection for personnel and equipment. Modicon MCM range is designed to provide safety applications requiring conformity to Performance Level PL e/Category 4 EN ISO 13849-1 and SIL3 EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy

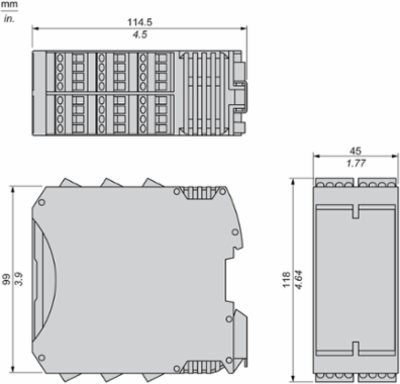

Depth114.5 mm
Complementary Attributes
- Integrated Connection Type
- not connected to backplane expansion bus
- Maximum Switching Current
- 6 A
- Minimum Switching Current
- 20 mA
Maximum Power Dissipation In W3 W
Maximum Switching Voltage400 V AC250 V DC
Important Information Attributes
- Cable Cross Section
- 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end
- Safety Level
- can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508SILCL 3 IEC 62061
- Certificate Agency
- RCM, cULus, TÜV
- Carbon Footprint Of The Distribution Phase [A4]
- 0.04903692051997389, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.24041001365228232, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 108 kg CO2 eq., 107.71125000000002
- Local Publishable Date
- 2026-01-12
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2403021EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2411
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Associated Fuse Rating
- 3.5 A, slow-blow
- Electrical Connection
- spring terminal
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
- Insulation
- 250 V AC between power supply and housing IEC 61800-5-1
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Overvoltage Category
- II
- Product Or Component Type
- safe relay output module
- Quantity Per Set
- 1
- Returnability
- Yes
- Service Life
- 20 year(s)
- Software Version
- v5.9.4
- Switching Time
- 12 ms
- Total Lifecycle Carbon Footprint
- 134 kg CO2 eq.
- Pep Code
- ENVPEP2403021EN
- Pep Verification Date
- 2023-11-30
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To monitor and proccess safety sensor signals and provide status information on fieldbusses at 4W during 10 years with a 100% use rate.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 262.8
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 99 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 61800-5-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 2744.2125
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 2744.2125
- Customs Code
- 8536410020
Local Signalling1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address, 2 LEDs green/red RELAY K1...K2 relay contact
Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Connections - Terminals1 spring clamp terminals, removable terminal block, 2 spring clamp terminals, removable terminal block
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.45740339526325163
Carbon Footprint Of The Manufacturing Phase [A1 To A3]25 kg CO2 eq., 25.137264794918977
Local Data StatusPublishable
Pre Comm Date2024-06-27
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Labele
Without Single Use PlasticNo
Product Kit IdentifierN
Device Short NameXPSMCM
Electrical Durability20000000 cycles
Function Of Modulemonitoring safety actuators relay output
Mechanical Durability20000000 cycles
Number Of Terminal Blocks12
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quality LabelsCE
Range Of ProductModicon MCM
Safety Reliability DataB10d = 300000 AC-15 230 V, , <3 A ISO 13849-1B10d = 750000 AC-15 230 V, , <1 A ISO 13849-1B10d = 10000000 DC-13 24 V, , <2 A ISO 13849-1
Shock Resistance10 gn 16 ms 1000 shocks on each axis)IEC 61496-1
Sustainable PackagingNo
Switching Voltage10 V DC
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; IT
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %2
Width Nominal45 mm
[Us] Rated Supply Voltage24 V - 20...20 % DC
Package Weight(Lbs)257 g
Warranty (In Months)18
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]526.95
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]526.95
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C, -10-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 133.5953651243545
- Environmental Disclosure
- ENVPEP2403021EN
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2403021EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Circularity ProfileENVEOLI2403021EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
Pep Verification Date2023-11-30
Psr Version0
General Attributes
- Product Or Component Type
- safe relay output module
Range Of ProductModicon MCM
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Number Of Outputs
- 8 relay
Output Typerelay, 8 NO + 4 NC, volt-free
