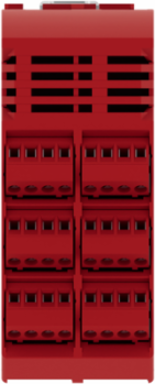

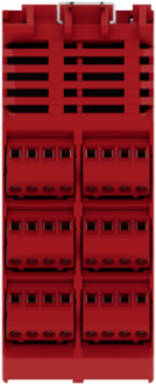

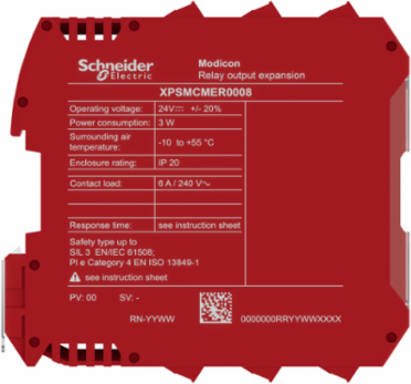

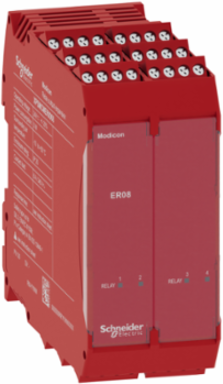

Schneider Electric XPSMCMER0008 expansion module, Modicon MCM, 4 safety relay outputs, screw
- MPN: XPSMCMER0008
- PPN: SCH-XPSMCMER0008
CAD
$643.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

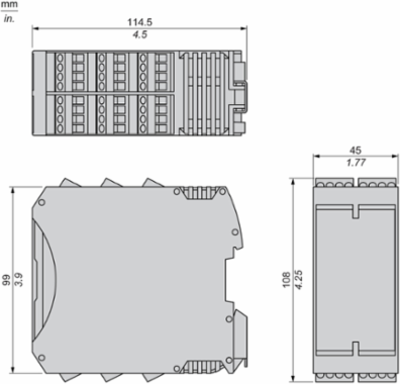

This safe expansion module is designed for relay outputs and belongs to the Modicon MCM, a range of Modular safety controllers. It has 8 forcibly guided contact safety relay outputs (8 NO + 4 NC) and 4 inputs for Start/Restart interlock and external device monitoring. It figures LEDs on its front face to display the status, removable spring clamp terminals for electrical connection and is IP20-rated. It does not require the backplane expansion connectors as it is directly wired to the selected OSSD. It has a rated supply voltage of 24V DC, a maximum power dissipation of 3W, and a Switching voltage of 10V DC. It has an electrical isolation between the contacts and the control. It weighs 0.375kg. Its dimensions are 45mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It uses monitoring logic, circuit protection, and redundant relays for fail-safe operation. It is certified by the TüV SÜD, RCM, cULus. It reaches Category 4, PL e, according to EN/ISO 13849-1, SIL CL 3, and IEC/EN 61508, IEC/EN 60261. It is sold in a 1-piece package. It instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM range is designed to provide the most comprehensive protection for personnel and equipment. Modicon MCM range is designed to provide safety applications requiring conformity to Performance Level PL e/Category 4 EN ISO 13849-1 and SIL3 EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|
| Depth | 114.5 mm |
|---|
Complementary Attributes
| Integrated Connection Type | not connected to backplane expansion bus |
|---|---|
| Maximum Switching Current | 6 A |
| Minimum Switching Current | 20 mA |
| Maximum Power Dissipation In W | 3 W |
|---|---|
| Maximum Switching Voltage | 400 V AC250 V DC |
Important Information Attributes
| Cable Cross Section | 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end |
|---|---|
| Safety Level | can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508SILCL 3 IEC 62061 |
| Certificate Agency | RCM, cULus, TÜV |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.5 kg CO2 eq., 0.45740339526325163 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 25 kg CO2 eq., 25.137264794918977 |
| Local Data Status | Publishable |
| Pre Comm Date | 2024-06-27 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | e |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Device Short Name | XPSMCM |
| Electrical Durability | 20000000 cycles |
| Function Of Module | monitoring safety actuators relay output |
| Mechanical Durability | 20000000 cycles |
| Number Of Terminal Blocks | 12 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quality Labels | CE |
| Range Of Product | Modicon MCM |
| Safety Reliability Data | B10d = 300000 AC-15 230 V, , <3 A ISO 13849-1B10d = 750000 AC-15 230 V, , <1 A ISO 13849-1B10d = 10000000 DC-13 24 V, , <2 A ISO 13849-1 |
| Shock Resistance | 10 gn 16 ms 1000 shocks on each axis)IEC 61496-1 |
| Sustainable Packaging | No |
| Switching Voltage | 10 V DC |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; IT |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 2 |
| Width Nominal | 45 mm |
| [Us] Rated Supply Voltage | 24 V - 20...20 % DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 2744.2125 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 2744.2125 |
| Customs Code | 8536410020 |

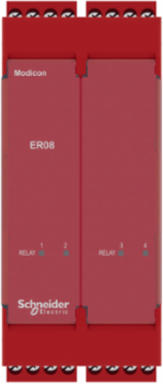

| Local Signalling | 1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address, 2 LEDs green/red RELAY K1...K2 relay contact |
|---|---|
| Vibration Resistance | +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 0.04903692051997389, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.24041001365228232, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 108 kg CO2 eq., 107.71125000000002 |
| Local Publishable Date | 2026-01-12 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2403021EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2411 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Associated Fuse Rating | 3.5 A, slow-blow |
| Electrical Connection | screw terminal |
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3 |
| Insulation | 250 V AC between power supply and housing IEC 61800-5-1 |

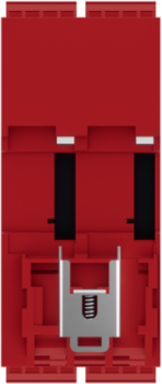

| Mounting Support | omega 35 mm DIN rail EN 50022 |
| Overvoltage Category | II |
| Product Or Component Type | safe relay output module |
| Quantity Per Set | 1 |
| Returnability | Yes |
| Service Life | 20 year(s) |
| Software Version | v5.9.4 |
| Switching Time | 12 ms |
| Total Lifecycle Carbon Footprint | 134 kg CO2 eq. |
| Pep Code | ENVPEP2403021EN |
| Pep Verification Date | 2023-11-30 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To monitor and proccess safety sensor signals and provide status information on fieldbusses at 4W during 10 years with a 100% use rate. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 262.8 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Height Nominal | 99 mm |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 61800-5-1 |
| Connections - Terminals | 12 captive screw clamp terminals, removable terminal block |
| Package Weight(Lbs) | 512.000 g |
| Warranty (In Months) | 18 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 526.95 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 526.95 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-55 °C, -10-55 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 133.5953651243545 |
| Environmental Disclosure | ENVPEP2403021EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2403021EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -20-85 °C, -20-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2403021EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 10-95 % |
| Pep Verification Date | 2023-11-30 |
| Psr Version | 0 |
General Attributes
| Product Or Component Type | safe relay output module |
|---|
| Range Of Product | Modicon MCM |
|---|
ETIM
| ETIM 8 | EC001449 |
|---|
| ETIM 9 | EC001449 |
|---|
Output Attributes
| Number Of Outputs | 8 relay |
|---|
| Output Type | relay, 8 NO + 4 NC, volt-free |
|---|
