Schneider Electric XPSMCMAI0200G Expansion modules, Modicon MCM, 2 analog input pairs, spring
- MPN: XPSMCMAI0200G
- PPN: SCH-XPSMCMAI0200G
CAD
$857.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

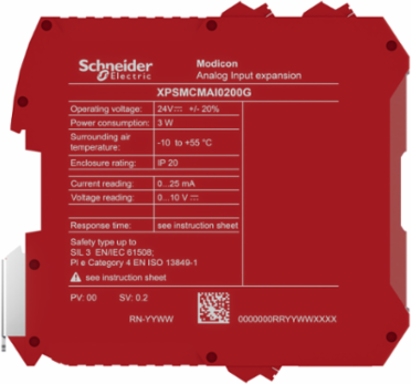

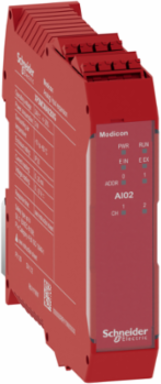

This safe expansion module is designed for safe inputs and belongs to the Modicon MCM, a range of Modular safety controllers. It has 2 configurable analog inputs, 0 to 20mA and 0 to10V, selectable via SoSafe configurable software. It figures LEDs on its front face to display the status, removable spring clamp terminals for electrical connection and is IP20-rated. The analog inputs are configurable individually or in pairs, with configurable filters and delays for each input. It has a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It weighs 0.127kg. Its dimensions are 45mm (Depth), 99mm (Height), and 114.5mm (Width). Its housing is red. It provides a safe signal if the current input value is within the defined and adjustable safety range. It is certified by the TüV SÜD, RCM, cULus. It reaches Category 4, PL e, according to EN/ISO 13849-1, SIL CL 3, and IEC/EN 61508, IEC/EN 60261. It is compatible with the backplane connectors. It is sold in a 1-piece package. It instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM range is designed to provide the most comprehensive protection for personnel and equipment. Modicon MCM range is designed to provide safety applications requiring conformity to Performance Level PL e/Category 4 EN ISO 13849-1 and SIL3 EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|
| Depth | 114.5 mm |
|---|
Complementary Attributes
| Integrated Connection Type | backplane expansion bus |
|---|
Important Information Attributes
| Cable Cross Section | 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end |
|---|---|
| Local Signalling | 1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address4 LEDs green/red IN input status |
| Safety Reliability Data | DC > 99 %, MTTFd = 186.69 yearsPFHD = 9.54E-8 1/h high |
| Voltage State 0 Guaranteed | 0...10 V analog input, 0...10 V analog input voltage, 0...10 V analogue input, 0...10 V analogue input circuit, 0...10 V analogue input signals, 0...10 V temperature sensor |
| Carbon Footprint Of The Distribution Phase [A4] | 0.03555909510269396, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.1 kg CO2 eq., 0.09964801703905943 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 127 kg CO2 eq., 127.2214464091827 |
| Local Publishable Date | 2026-01-12 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2403017EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2411 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Device Short Name | XPSMCM |
| Electromagnetic Compatibility | electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3 |
| Insulation | 250 V AC between power supply and housing IEC 61800-5-1 |
| Number Of Terminal Blocks | 4 |
| Power Consumption In W | 3 W |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quality Labels | CE |
| Returnability | Yes |
| Shock Resistance | 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To extend digital inputs on a safety controller, ensuring reliable monitoring and integration in industrial safety systems, operating at 3W over 10 years at a 100% use rate. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 262.8 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 99 mm |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV IEC 61800-5-1 |
| Connections - Terminals | 4 spring clamp terminals, removable terminal block |
| Package Weight(Lbs) | 257 g |
| Warranty (In Months) | 18 |
| Current State 0 Guaranteed | 0...20 mA analog input), 0...20 mA analog input current), 0...20 mA analogue input), 0...20 mA analogue input circuit), 0...20 mA analogue input signals), 0...20 mA temperature sensor) |
|---|---|
| Safety Level | can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508SILCL 3 IEC 62061 |
| Vibration Resistance | +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1 |
| Certificate Agency | RCM, cULus, TÜV |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.17792029276662782, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 4 kg CO2 eq., 4.349955445887022 |
| Local Data Status | Publishable |
| Pre Comm Date | 2024-06-27 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | e |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Electrical Connection | spring terminal |
| Function Of Module | analogue input current analog inputanalogue input voltage analog input current |
| Mounting Support | omega 35 mm DIN rail EN 50022 |
| Overvoltage Category | II |
| Power Dissipation In W | 3 W |
| Product Or Component Type | safe input expansion module |
| Range Of Product | Modicon MCM |
| Service Life | 20 year(s) |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 132 kg CO2 eq. |
| Pep Code | ENVPEP2606036_V1 |
| Pep Verification Date | 2026-06-22 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 1020 |
| Energy Model - Manufacturing [A1-a3] | Electricity mix; Consumption mix; Low voltage; 2022; Italy, IT |
| Energy Model - Use [B6] | Electricity mix; Consumption mix; Low voltage; 2022; Europe, EU-27 |
| Recyclability Potential In % | 2 |
| Width Nominal | 22.5 mm |
| [Us] Rated Supply Voltage | 24 V - 20...20 % DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 131.8845292599781 |
| Ambient Air Temperature For Storage | -20-85 °C-20-85 °C |
| Environmental Disclosure | ENVPEP2606036_V1 |
| Ip Degree Of Protection | IP20 enclosure) |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2606036_V1 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Ambient Air Temperature For Operation | -10-55 °C-10-55 °C |
| Circularity Profile | ENVEOLI2403017EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 10-95 % |
| Pep Verification Date | 2026-06-22 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | safe input expansion module |
|---|
| Range Of Product | Modicon MCM |
|---|
ETIM
| ETIM 8 | EC001449 |
|---|
| ETIM 9 | EC001449 |
|---|
Input Attributes
| Discrete Input Voltage | 24 V DC |
|---|
| Number Of Inputs | 2 analog |
|---|
