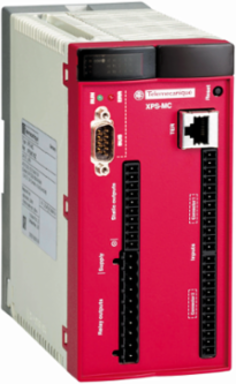

Telemecanique Sensors XPSMC16ZC Safety Controller 24V DC, 16 Inputs, 32 LEDs, IP20, 0.82 kg
Telemecanique Sensors XPSMC16ZC Safety Controller 24V DC, 16 Inputs, 32 LEDs, IP20, 0.82 kg
- MPN: XPSMC16ZC
- PPN: SCH-XPSMC16ZC
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3554.18/ EA
Description
This product is part of the Preventa XPS MP, XPS MC, XPS MCM range, an offer of safety controllers. This safety controller provides 16 inputs and 32 LEDs for signalling. It is a safety controller with a power consumption of 12W, control circuit voltage of 28.8V and a rated supply voltage of 24V DC. Supported communication port protocols are Modbus with RJ45 port, CANopen with 9-way SUB-D male port. It is an IP20 rated product. Its dimensions are 74mm (Width) x 153mm (Depth) x 151.5mm (Height). It weighs 0.82kg. It is designed to provide a solution for safety applications requiring conformity to Performance Level PL e/Category 4 EN/ISO 13849-1 and SIL3 EN/IEC 61508. This product is certified by UL, CSA and TUV. It meets EN 574/ISO 13851, EN 1760-1/ISO 13856-1, EN/IEC 61496-1, EN/IEC 60204-1, EN/IEC 60947-5-1, EN 954-1/EN/ISO 13849-1 and IEC 61508 standards. Simple, it features redundancy principle micro-processor based technology to provide advanced functions, flexibility regarding the choice of safety function and more precise diagnostics are just some of its advantages. Safety controller XPS MC is configured with a simple software environment where functions are mapped to the various controller outputs according to the application requirements.
Specifications
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -25-85 °C
Ip Degree Of ProtectionIP20 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406025EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1406025EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Height
- 151.5 mm
- Mounting Support
- mounting plate
- Power Consumption In W
- 12 W
- Response Time
- configurable : 20 ms or 30 ms with software XPSMCWIN
- Minimum Output Current
- 10 mA relay output
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV III IEC 60647-5-1, DIN VDE 0110 part 1
- Output Type
- 2 relays, 2 NO contacts (4 NO total) || solid state, 6, volt-free
- Parity
- even Modbus || no Modbus || odd Modbus
- Supported Modbus Function
- 01 8-bit output data/32-bit input data || 02 32-bit input data/8-bit output data || 03 information and errors
- Local Signalling
- 32 LEDs
- Maximum Line Resistance
- 100 Ohm <2000 m
- Width
- 74 mm
- [Uc] Control Circuit Voltage
- 28.8 V
- Synchronisation Time Between Inputs
- depending on configuration selected
- Breaking Capacity
- 180 VA holding AC-15 C300 relay output || 1800 VA inrush AC-15 C300 relay output
[Ith] Conventional Free Air Thermal Current16 A relay output || 6.5 A static output circuit
Output Thermal Current4 A for both outputs simultaneously || 6 A for 1 output and 2 A for the other relay output
Minimum Output Voltage17 V relay output
Data Format1 start bit/8 data bits || 1 stop bit even or odd || 2 stop bits without parity || RTU (Remote Terminal Unit) mode
Associated Fuse Rating16 A gL power supply || 4 A gL relay output || 6 A fast blow relay output
Net Weight0.82 kg
[Ui] Rated Insulation Voltage300 V 2)IEC 60647-5-1, DIN VDE 0110 part 1
Exchange Size14 words
Method Of Accessslave
Number Of Addresses1-127 CANopen || 1-247 Modbus
Input Protection Typeexternal fuse 16 A
Depth153 mm
Function Of Moduledynamic monitoring of hydraulic valves on linear presses || eccentric press || emergency stop monitoring, with or without time delay, 1 or 2-channel wiring || enabling switch monitoring, 2 or 3 contacts || foot switch monitoring || guard monitoring for injection presses and blowing machines || guard monitoring with 1 or 2 limit switches || hydraulic press || magnetic switch monitoring category 4 EN/IEC 61496 || monitoring safety stop at top dead centre on eccentric press category 3 EN 574/ISO 13851 || muting function of light curtains || position selector || safety mat monitoring || safety time delays || shaft/chain breaking monitor || zero speed detection || light curtain monitoring category 4 IEC 61496 || two-hand control category 3 EN 574/ISO 13851
Breaking Capacity2 A 24 V static output circuit || 1.5 A 24 V DC-13)50 ms relay output
Specifications
- Product Certifications
- UL || TÜV || CSA
- Range Of Product
- Preventa Safety automation
- Number Of Inputs
- 16
- Safety Module Name
- XPSMC
- Communication Port Protocol
- CANopen 1 SUB-D 9-pin male, serial link 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps or 1 Mbps || Modbus 1 RJ45, serial link 1200 bps, 2400 bps, 4800 bps, 9600 bps or 19200 bps
- Safety Level
- can reach PL e/category 4 EN 954-1/EN/ISO 13849-1 || can reach SIL 3 IEC 61508
[Us] Rated Supply Voltage24 V DC - 20...20 %
StandardsIEC 61496-1 || EN 574/ISO 13851 || EN 1760-1/ISO 13856-1 || IEC 61508 || EN 954-1/EN/ISO 13849-1 || IEC 60947-5-1 || IEC 60204-1
Product Or Component Typeconfigurable safety controller
Type Of Startconfigurable
Safety Use Categorycategory 4 maximum EN 954-1/EN/ISO 13849-1 || PLE maximum ISO 13849-1 || SIL 3 maximum IEC 61508
