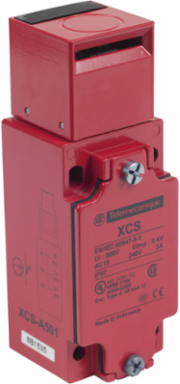

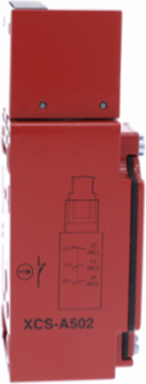

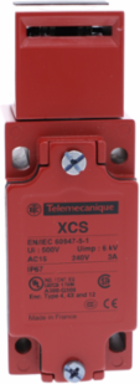

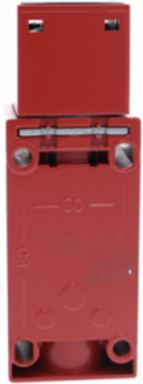

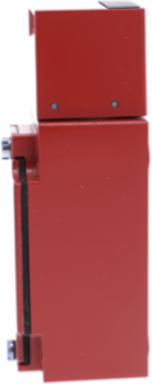

Telemecanique Sensors XCSA501 Safety switch, Telemecanique Safety switches XCS, metal XCSA, 1 NC + 2 NO, slow break, 1 entry tapped Pg 13
- MPN: XCSA501
- PPN: TES-XCSA501
- UNSPSC: 39122213
CAD
$221.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Preventa XCS Key Operated Safety Switch has an adjustable turret head and a Zamak body. This key operated safety switch for guard doors, with adjustable turret head switch, has a robust red coated Zamak body with one cable gland entry, allowing flexible installation. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. When wired as recommended in relevant standards, it conforms to category 4, performance level PL e, SIL 3 and complies withEN/ISO 13849-1, EN/IEC 61508. It simply ensures a "door-open machine stop" control on your machine, with maximal reliability. It secures the machine and system operation with a key, only available to authorized operators.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Safety switches XCS |
|---|---|
| Electrical Connection | terminal 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Product Or Component Type | safety switch |
| Design | industrial |
| Head Type | key operated turret head |
| Contact Operation | slow-break, break before make |
| Cable Outer Diameter | 9-12 mm |
| Cable Entry | 1 entry tapped Pg 13.5 |
|---|---|
| Locking Options Description | without locking of actuator |
| Component Name | XCSA |
| Material | metal |
| Contacts Type And Composition | 1 NC + 2 NO |
| Local Signalling | without |
| Number Of Poles | 3 |
Complementary
| Height | 114-114 mm |
|---|---|
| Minimum Actuation Speed | 0.01 m/s |
| Head Material | zamak |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14 |
| [Ie] Rated Operational Current | 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 |
| Mechanical Durability | 1000000 cycles |
| Body Material | zamak |
| Width | 40 mm |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
| Short-Circuit Protection | 10 A cartridge fuse gG (gl) |
|---|---|
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Net Weight | 0.44 kg |
| Maximum Operating Rate | 10 cyc/mn for maximum durability |
| Positive Opening | with NC contact |
| Minimum Actuator Force For Extraction | 20 N |
| Maximum Actuation Speed | 0.5 m/s |
| Safety Reliability Data | B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Depth | 44 mm |
Environment
| Product Certifications | UL || CSA |
|---|---|
| Standards | EN/IEC 60204-1 || EN 1088/ISO 14119 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/ISO 12100 || UL 508 |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TC |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Shock Resistance | 10 gn 11 ms IEC 60068-2-27 |
| Ip Degree Of Protection | IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Electrical Shock Protection Class | class I EN/IEC 61140 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
