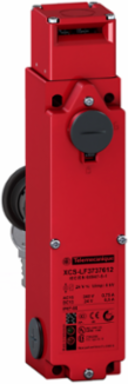

Telemecanique Sensors XCSL764B1 Safety switch, Telemecanique Safety switches XCS, interlock XCSL 300 VAC 10 A
- MPN: XCSL764B1
- PPN: TES-XCSL764B1
CAD
$707.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Safety switch, Telemecanique Safety switches XCS, interlock XCSL 300 VAC 10 A
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Safety switches XCS
- Component Name
- XCSL
Product Or Component Typesafety switch
Head Typekey operated turret head
Complementary
- Maximum Operating Rate
- 10 cyc/mn for maximum durability
- Positive Opening
- with NC contact
- Signalling Circuit Consumption
- 7 mA
- Power Consumption In Va
- 10 VA inrush || 10 VA sealed
- Protection Type
- overvoltage protection signalling circuit
- Supply Frequency
- 50/60 Hz
Maximum Load Current<= 15 A
Load Factor1
Mechanical Durability1000000 cycles
Supply Voltage TypeAC/DC
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-5-1
Safety Levelcan reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Electrical Shock Protection Class
- class I EN/IEC 60536
Protective TreatmentTC
