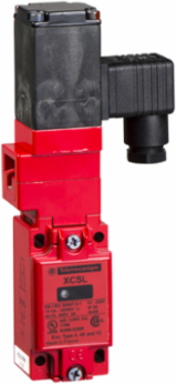

Telemecanique Sensors XCSL786B1 Safety switch, Telemecanique Safety switches XCS, interlock sw.300 VAC 10 A (metric conduit)
- MPN: XCSL786B1
- PPN: TES-XCSL786B1
- UNSPSC: 39122213
CAD
$843.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Safety switch, Telemecanique Safety switches XCS, interlock sw.300 VAC 10 A (metric conduit)
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Safety switches XCS
- Component Name
- XCSL
Product Or Component Typesafety switch
Head Typekey operated turret head
Complementary
- Maximum Operating Rate
- 10 cyc/mn for maximum durability
- Positive Opening
- with NC contact
- Signalling Circuit Consumption
- 7 mA
- Power Consumption In Va
- 10 VA inrush || 10 VA sealed
- Protection Type
- overvoltage protection signalling circuit
- Supply Frequency
- 50/60 Hz
Maximum Load Current<= 15 A
Load Factor1
Mechanical Durability1000000 cycles
Supply Voltage TypeAC/DC
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-5-1
Safety Levelcan reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Environment
- Electrical Shock Protection Class
- class I EN/IEC 60536
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
