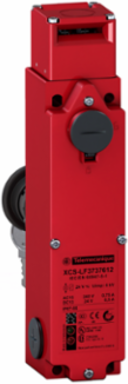

Telemecanique Sensors XCSL566F1 Safety switch, Telemecanique Safety switches XCS, interlock limit 300 VAC 10 as XCSL
- MPN: XCSL566F1
- PPN: TES-XCSL566F1
- UNSPSC: 39122213
CAD
$784.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Safety switch, Telemecanique Safety switches XCS, interlock limit 300 VAC 10 as XCSL
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Safety switches XCS |
|---|---|
| Component Name | XCSL |
| Product Or Component Type | safety switch |
|---|---|
| Head Type | key operated turret head |
Complementary
| Maximum Operating Rate | 10 cyc/mn for maximum durability |
|---|---|
| Positive Opening | with NC contact |
| Signalling Circuit Consumption | 7 mA |
| Power Consumption In Va | 10 VA inrush || 10 VA sealed |
| Protection Type | overvoltage protection signalling circuit |
| Supply Frequency | 50/60 Hz |
| Maximum Load Current | <= 15 A |
|---|---|
| Load Factor | 1 |
| Mechanical Durability | 1000000 cycles |
| Supply Voltage Type | AC/DC |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-5-1 |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
Environment
| Electrical Shock Protection Class | class I EN/IEC 60536 |
|---|
| Protective Treatment | TC |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
