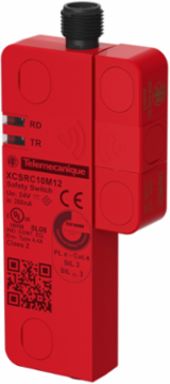

Telemecanique Sensors XCSRC10M12 Preventa RFID safety switch, Telemecanique Safety switches XCS, contactless Single model, Unique pairing
Telemecanique Sensors XCSRC10M12 Preventa RFID safety switch, Telemecanique Safety switches XCS, contactless Single model, Unique pairing
- MPN: XCSRC10M12
- PPN: TES-XCSRC10M12
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$305.77/ EA
Description
This XCSRC RFID Contactless Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. It has 2 NO Solid State PNP safety outputs (OSSDs). It is a single model with a unique pairing for point-to-point connection to a safety control unit. It has a high level of coding (unique code) according to EN/ISO 14119. Its integral LEDs offer a local Signaling, allowing it to clearly display the status of the device. Its PFHD reliability data is 5 x 10⁻¹⁰. It has a plastic body with M12 connector. Its IP65 / IP66 / IP67 / IP69K degree of protection and ECOLAB compatibility makes it ideal for heavy duty use in harsh conditions and hygiene environments. It also complies with EN/ISO 14119, EN/IEC 60947-5-2, EN/IEC 60947-5-3 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Specifications
Complementary
- Product Certifications
- EAC || TÜV || FCC || IC || CSA 22-2 || Ecolab || E2 || RCM
- Switching Frequency
- <= 0.5 Hz
- Standards
- EN/IEC 60947-5-2 || ISO 14119 || EN/IEC 60947-5-3
- Ambient Air Temperature For Operation
- -25-70 °C
- Marking
- FCC || TÜV || RCM || EAC || IC || CE || cULus
- Size
- transponder 50 x 15 x 15 mm || reader 108.3 x 30 x 15 mm
- Material
- valox
- Maximum Switching Voltage
- 26.4 V DC
- Connector Type
- M12 male
- Ambient Air Temperature For Storage
- -40-85 °C
- [Sa] Assured Operating Distance
- 10 mm face to face
- Local Signalling
- green, orange and red 2 multi-colour LEDs
- [Ie] Rated Operational Current
- 60 mA
- Electrical Connection
- 1 male connector
- Safety Reliability Data
- PFH<SUB>D</SUB> = 5E-10/h EN/IEC 62061 || PFH<SUB>D</SUB> = 5E-10/h EN/ISO 13849-1
- Protection Type
- short-circuit protection
- [Ui] Rated Insulation Voltage
- 30 V DC
- Maximum Discordance Time
- 120 ms
Tightening Torque< 1.5 N.m
[Sar] Assured Tripping Distance35 mm face to face
Switching Capacity In Ma200 mA
Shock Resistance30 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance10 gn 10-150 Hz)EN/IEC 60068-2-6
Designrectangular, standard
[Uimp] Rated Impulse Withstand Voltage0.8 kV IEC 60947-5-2
Ip Degree Of ProtectionIP65 EN/IEC 60529 || IP66 EN/IEC 60529 || IP67 EN/IEC 60529 || IP69K DIN 40050
Type Of Output Stagesolid-state, PNP
Maximum Delay First Up5 s
Service Life20 year(s)
Response Time120 ms typical
[Ue] Rated Operational Voltage24 V DC - 20...10 %)SELV or PELV EN/IEC 60204-1
Electrical Shock Protection Classclass III EN/IEC 61140
Safety Outputs2 NO
Approach Directions3 directions-transponder with rotary sensing face
Number Of Poles5
Safety LevelSIL 3 EN/IEC 61508 || SILCL 3 EN/IEC 62061 || PL = e EN/ISO 13849-1 || category 4 EN/ISO 13849-1
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1804002EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Specifications
- Range Of Product
- Telemecanique Safety switches XCS
- Component Name
- XCSRC
Product Or Component TypePreventa RFID safety switch
